BARE METAL ORCHESTRATION

Table of Contents

• Module 1: Why Bare Metal Still Matters
• Module 2: First Principles // Defining Bare Metal Orchestration
• Module 3: Control Plane vs. Hardware Plane
• Module 4: Threat Model // Hardware-Level Defense
• Module 5: Bare Metal Architecture Patterns
• Module 6: Orchestration Platforms & Tooling
• Module 7: Bare Metal + Cloud Native (Kubernetes)
• Module 8: Performance, Determinism, and Cost Physics
• Module 9: Operational Maturity Model
• Module 10: Decision Framework // Strategic Validation
• Frequently Asked Questions (FAQ)
• Additional Resources

Architect’s Summary: This guide provides a deep technical breakdown of bare metal orchestration strategy. It covers the transition from manual “server hugging” to automated, programmable hardware lifecycles. Specifically, it is written for infrastructure architects and systems engineers designing sovereign environments where performance, isolation, and root-of-trust cannot be delegated to a hypervisor.

Module 1: Why Bare Metal Still Matters

Specifically, while virtualization and cloud abstractions optimize for speed, they inherently remove critical trust boundaries. Bare metal is required when the “virtualization tax” is unacceptable or when security mandates forbid sharing a physical kernel with other tenants. Initially, bare metal should be viewed as an intentional architectural choice for high-performance and high-security workloads rather than a legacy constraint.

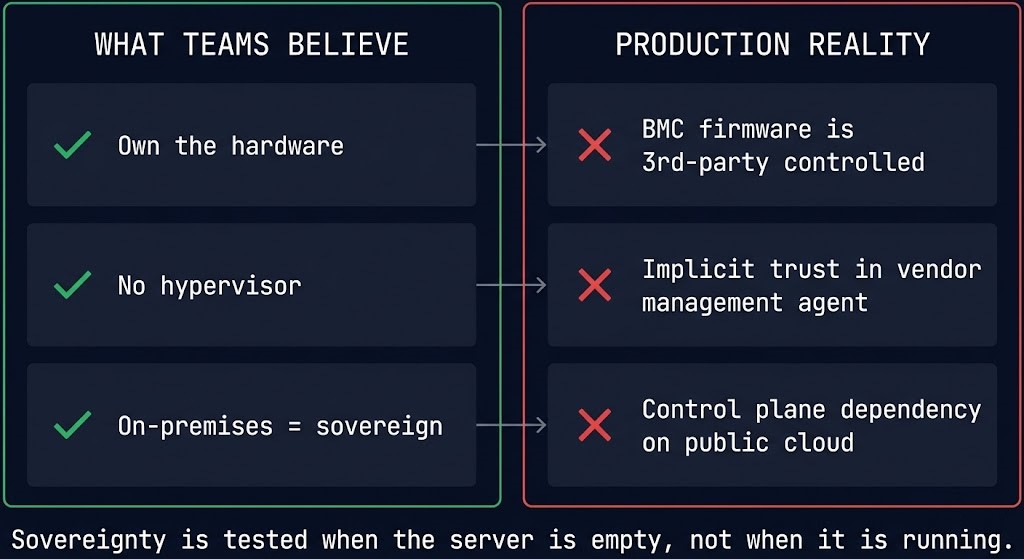

Architectural Implication: You must recognize that bare metal provides the ultimate boundary for data sovereignty. If a workload requires absolute deterministic performance or must adhere to national security mandates regarding hardware isolation, a hypervisor represents an unnecessary attack surface. Consequently, architects must treat bare metal as the foundational layer for any “Sovereign Stack.”

Module 2: First Principles // What Bare Metal Orchestration Actually Is

To master this strategy, you must define bare metal orchestration as the automated lifecycle management of physical servers as programmable, ephemeral resources.

• Hardware Discovery: Automatically identifying CPU, memory, and NIC capabilities via the BMC.
• Secure Provisioning: Utilizing PXE, iPXE, or HTTP boot to deploy OS images without human intervention.
• Firmware Management: Centrally controlling BIOS, UEFI, and RAID settings to ensure configuration parity.
• Policy-Driven Scheduling: Assigning workloads to specific hardware profiles based on architectural intent.

Architectural Implication: Orchestration makes bare metal “cloud-like” without surrendering ownership. Initially, you must move away from hand-built servers. Specifically, the goal is to reach a state where a server is treated as a software asset that can be reprovisioned as easily as a virtual machine.

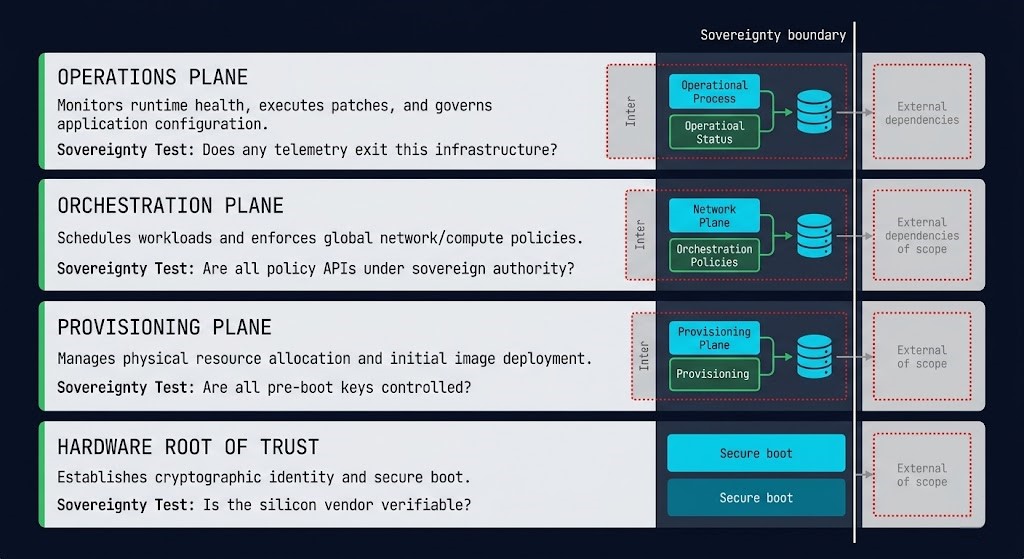

Module 3: Control Plane vs. Hardware Plane

In a sovereign environment, the integrity of the system is entirely dependent on who controls the orchestration layer.

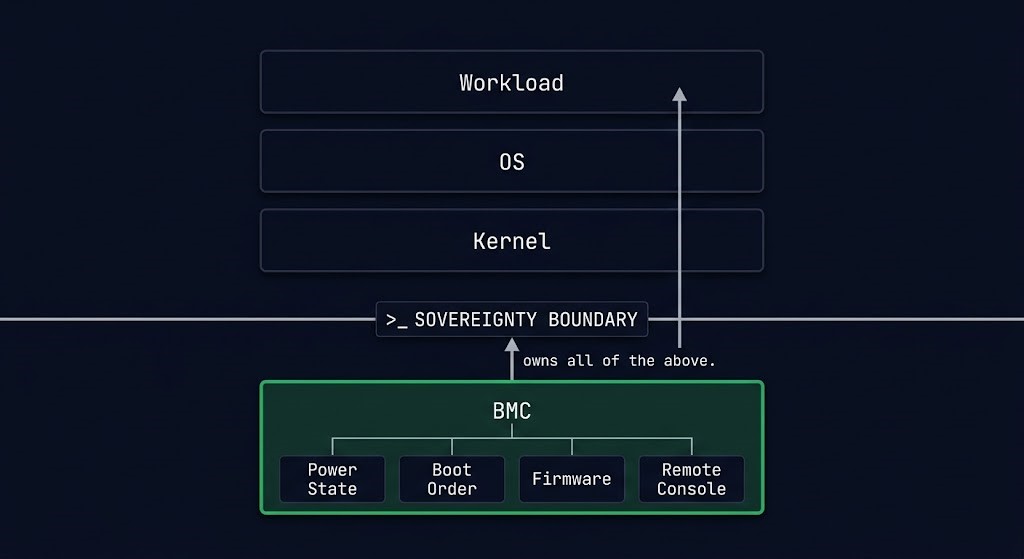

• Hardware Plane: The physical assets—CPUs, RAM, and the Baseboard Management Controller (BMC).
• Control Plane: The “Brain”—Provisioning APIs, identity enforcement, and state reconciliation logic.

Architectural Implication: Sovereignty is enforced at the control plane level. Initially, if your hardware management APIs are hosted by a third party, your sovereignty is compromised. Therefore, a truly sovereign architecture requires a self-hosted control plane that manages the hardware plane via out-of-band networks (IPMI/Redfish).

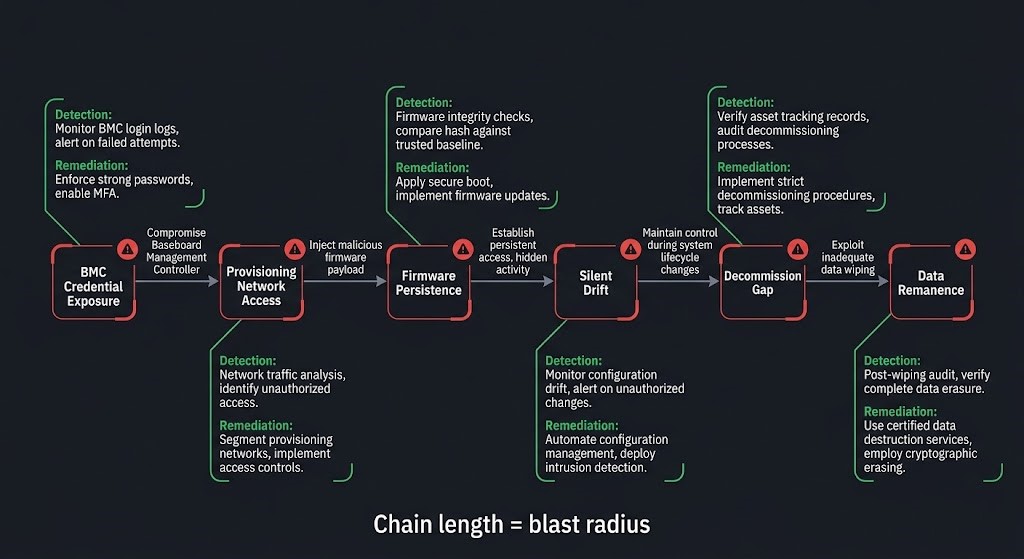

Module 4: Threat Model // What Bare Metal Defends Against

Bare metal orchestration mitigates specific classes of risk that are inherent to shared-tenant virtualized environments.

Architectural Implication: This model assumes that the “Infrastructure Layer” itself could be hostile. Initially, you are defending against:

1. Hypervisor Escape: An attacker jumping from a guest VM to the host.
2. Noisy Neighbor Risks: Unpredictable I/O or CPU contention caused by other tenants.
3. Cloud Admin Access: Unaudited access to your memory or storage by the provider’s hypervisor.
4. Supply Chain Tampering: Ensuring firmware has not been modified since it left the factory. Consequently, bare metal provides a “clean room” for sensitive data processing.

Module 5: Bare Metal Architecture Patterns

Successful bare metal deployment relies on repeatability and the elimination of manual “snowflake” configurations.

• Dedicated Node Pools: Initially, grouping hardware by security level or regulatory requirement to ensure strict isolation.
• Stateless Reprovisioning: Specifically, treating servers as ephemeral. On reboot, the server pulls a fresh, immutable OS image, ensuring no configuration drift exists.
• Hardware Segmentation: Furthermore, utilizing VLANs and VRFs to physically separate management traffic from data traffic. Consequently, these patterns ensure that bare metal can scale with the same agility as cloud infrastructure.

Module 6: Orchestration Platforms & Tooling

Specifically, the choice of tooling must support the requirement for absolute ownership of the provisioning lifecycle.

• Metal³ / Cluster API: The gold standard for bringing bare metal nodes into a Kubernetes-native workflow.
• MAAS (Metal as a Service): Initially, providing a highly mature API for managing data center-scale hardware.
• Ironic: Specifically, the OpenStack-derived engine that manages hardware discovery and image deployment.
• Tinkerbell: Furthermore, a microservices-based engine designed for cloud-native workflows.

Architectural Implication: Tooling is a means to an end; the primary requirement is Hardware Identity Validation. Initially, ensure your chosen platform can verify the “Root of Trust” before deploying an OS.

Module 7: Bare Metal + Cloud Native (Kubernetes)

Initially, bare metal does not exclude Kubernetes; rather, it strengthens the container fabric by removing the hypervisor abstraction layer.

Architectural Implication: This model is critical for “High-Density” workloads like AI/ML clusters, GPU-accelerated processing, and 5G Telco clouds. Initially, running Kubernetes on bare metal provides Direct Hardware Access, which is necessary for SR-IOV and DPDK performance. Consequently, it removes the latency jitter inherent in virtual networking.

Module 8: Performance, Determinism, and Cost Physics

Bare metal delivers the highest possible performance-per-dollar by eliminating the “Virtualization Tax.”

• Zero Abstraction Tax: 100% of CPU and I/O cycles are dedicated to the application.
• Predictable Latency: Initially, removing the hypervisor scheduler ensures that interrupt handling is deterministic.
• Cost Dynamics: While CapEx is higher initially, the long-term TCO is lower due to reduced licensing fees and higher resource density. Specifically, you pay for the hardware once, rather than paying for a recurring subscription to a hypervisor vendor.

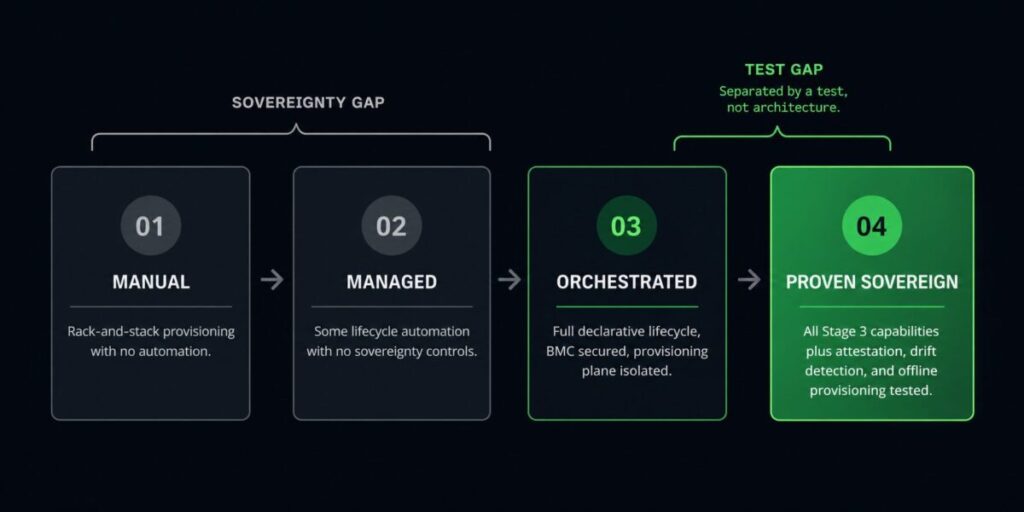

Module 9: Operational Maturity Model

Importantly, maturity is measured by the total removal of “Human-in-the-Loop” provisioning.

• Stage 1: Manual: Servers are hand-built, and OS installation is done via ISO or USB. High risk of drift.
• Stage 2: Scripted: Initially, using PXE and Kickstart to automate the base OS install.
• Stage 3: Orchestrated: Specifically, using an API-driven engine to manage the entire lifecycle from discovery to decommissioning.
• Stage 4: Sovereign: Finally, achieving a state where policy-controlled, auditable infrastructure-as-code (IaC) manages the hardware without manual intervention.

Module 10: Decision Framework // When Bare Metal Is Required

Ultimately, bare metal orchestration is the foundation of digital independence; it is mandatory when trust and performance cannot be delegated.

Choose to architect for bare metal when your workloads demand total hardware isolation or when your encryption keys must never reside in a third-party memory space. Furthermore, it is a requirement when performance must be deterministic for real-time financial or industrial applications. Conversely, if your infrastructure trust model requires “Zero Shared Dependencies,” bare metal is the only answer. Consequently, it is a core pillar of the sovereign stack.

Frequently Asked Questions (FAQ)

Q: Is bare metal harder to manage than virtual machines?

A: Initially, yes, but only if you lack orchestration. With tools like Metal³ or MAAS, managing 1,000 servers is as automated as managing 1,000 VMs.

Q: Can I run containers on bare metal?

A: Specifically, yes. This is the preferred model for high-performance Kubernetes, as it allows containers to communicate directly with hardware accelerators like GPUs and high-speed NICs.

Q: Is bare metal “Legacy”?

A: No. Initially, the world’s largest AI clusters and financial engines run on bare metal. It is a “high-performance” tier of modern infrastructure.
