ENTERPRISE STORAGE & SDS

Table of Contents

• Module 1: Why Enterprise Storage Architecture Matters
• Module 2: First Principles // Data is Physics
• Module 3: Storage Abstraction & Virtualization
• Module 4: Software-Defined Storage (SDS) Fundamentals
• Module 5: Data Resiliency, Replication & Snapshots
• Module 6: Storage Performance & Tiering
• Module 7: Hybrid & Cloud Storage Patterns
• Module 8: Container Storage & Stateful Workloads
• Module 9: Day-2 Operations & Observability
• Module 10: Storage Maturity Model & Decision Framework
• Frequently Asked Questions (FAQ)
• Additional Resources

Architect’s Summary: This guide provides a deep technical breakdown of enterprise storage and Software-Defined Storage (SDS) architecture. It shifts the perspective from physical “boxes” to programmable abstraction layers. Specifically, it is written for storage architects, virtualization leads, and platform engineers designing deterministic data fabrics for high-availability enterprise environments.

Module 1: Why Enterprise Storage Architecture Matters

Specifically, storage is no longer just “disks in a rack”; it has evolved into a programmable abstraction layer that defines application survival. Modern workloads fail not just when hardware breaks, but when data placement, access patterns, and replication policies are misaligned with the compute layer. Initially, you must recognize that storage architecture is the foundation of your Disaster Recovery readiness and performance predictability.

Architectural Implication: You must move beyond managing “LUNs” to managing “Service Level Objectives” (SLOs). If your storage layer cannot behave as a deterministic service, your entire hybrid cloud strategy will suffer from unpredictable latency. Consequently, architects must design storage as a software-defined asset where policies follow the data.

Module 2: First Principles // Data is Physics

To master this pillar, you must accept that storage is governed by the immutable laws of data physics, which no amount of software abstraction can fully ignore.

• Latency vs. Throughput: Initially, you must distinguish between the speed of a single I/O (IOPS) and the total volume of data moved (throughput).
• Consistency Physics: Synchronous replication is limited by the speed of light; asynchronous replication is limited by bandwidth and change rates.
• Data Durability: Specifically, utilizing Erasure Coding or Replication Factors to ensure data survives multiple concurrent hardware failures.
• Data Locality: Performance is highest when compute and storage share the same physical or logical “backplane.”

Architectural Implication: Modern storage modeling must happen upfront. Initially, choosing the wrong replication factor or failing to account for network latency in a stretched cluster will result in application-level timeouts that are impossible to “tune” away later.

Module 3: Storage Abstraction & Virtualization

Virtualization decouples logical storage volumes from physical media, turning storage into an API contract rather than a hardware dependency.

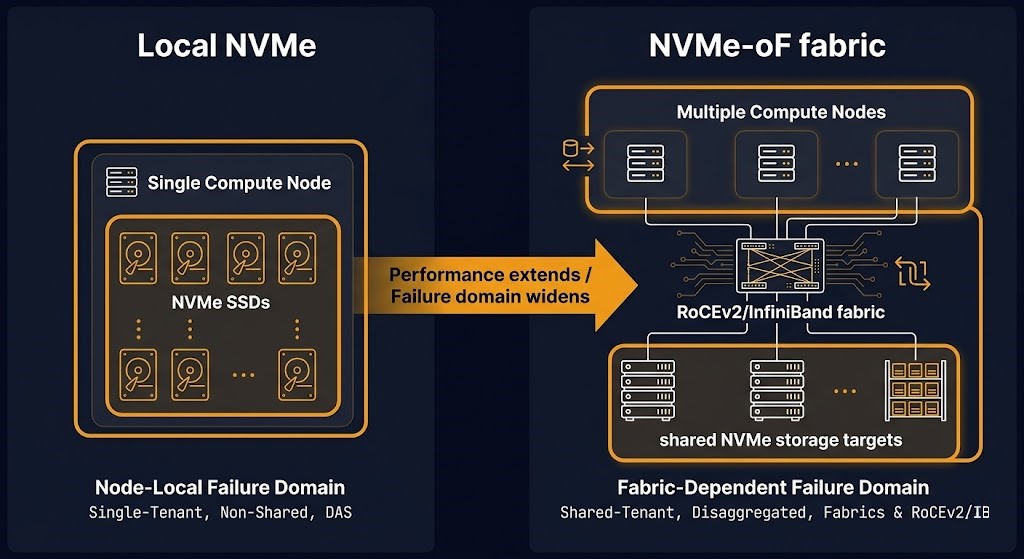

• Block Abstraction: Utilizing SAN, iSCSI, or the high-velocity NVMe-oF for low-latency database workloads.
• File Abstraction: Specifically, NFS and SMB for shared application data and user profiles.
• Object Abstraction: Furthermore, S3-compatible storage for massive scale and cloud-native archival.

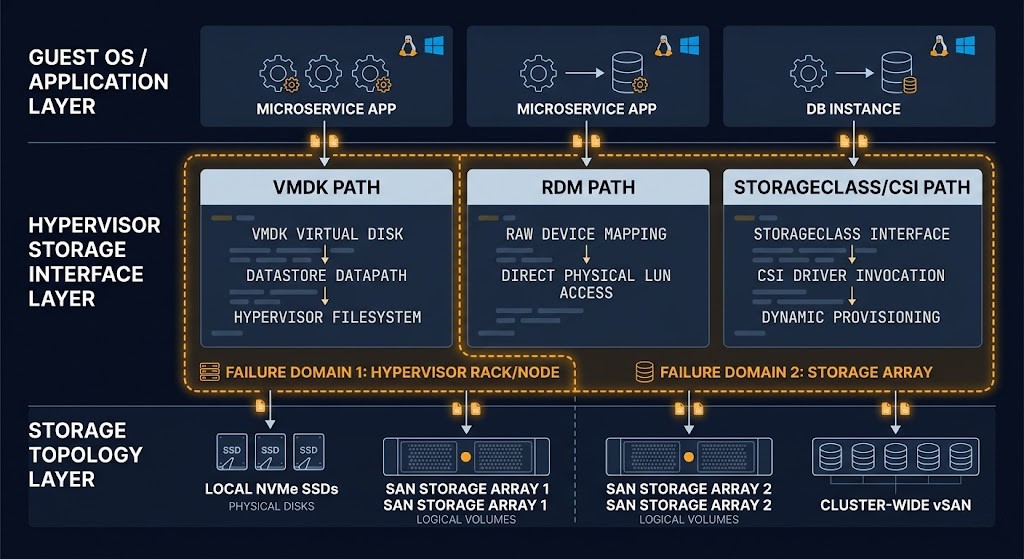

Architectural Implication: Storage is now a system of “Contracts.” Initially, the hypervisor (ESXi, AHV, KVM) requests a volume with specific characteristics, and the underlying fabric must guarantee those traits. Consequently, virtualization allows for the movement of workloads across physical hardware without disrupting data access.

Module 4: Software-Defined Storage (SDS) Fundamentals

Software-Defined Storage (SDS) provides the centralized policy management and dynamic allocation required for modern scale.

• Distributed Storage Clusters: Initially, platforms like Nutanix AOS, VMware vSAN, or Ceph pool local resources into a global namespace.
• Storage Efficiency: Specifically, utilizing Thin Provisioning, Deduplication, and Compression to maximize the value of physical flash and spinning media.

Architectural Implication: SDS is not a product—it is an architectural pattern. Initially, you must decide the trade-off between Replication (fastest recovery) and Erasure Coding (highest capacity efficiency). Consequently, SDS enables storage to scale out linearly, where adding a node adds both compute and storage capacity simultaneously.

Module 5: Data Resiliency, Replication & Snapshots

Resiliency is the core mission of enterprise storage; it must guarantee data integrity and recoverability under extreme stress.

Architectural Implication: You must match the replication type to the business requirement. Initially, use Synchronous Replication for zero-RPO workloads where data loss is unacceptable. Conversely, use Asynchronous Replication for geographic distance where latency prevents sync-locks. Furthermore, utilize Immutable Snapshots to protect against ransomware and accidental deletion. Therefore, storage must be the “Final Authority” on data truth.

Module 6: Storage Performance & Tiering

Performance is strictly workload-dependent; a “one size fits all” storage strategy is an economic and technical failure.

• Hot Tier: Initially, utilizing NVMe and high-IOPS SSDs for active transactional databases.
• Warm Tier: Specifically, SAS SSDs or HDD-backed caches for application servers.
• Cold Tier: Furthermore, Object storage or S3-compatible tiers for long-term retention and archival.

Architectural Implication: Tiering policies must be automated. Initially, manual data migration between tiers is an operational bottleneck. Specifically, your storage logic should automatically promote “Hot” data to the fastest media based on real-time access patterns.

Module 7: Hybrid & Cloud Storage Patterns

Enterprise storage must now span the boundary between on-premises deterministic sites and elastic cloud regions.

Architectural Implication: Storage abstraction allows for consistent management across boundaries. Initially, you should utilize Cloud-Tiering to offload aging snapshots to public cloud object storage (AWS S3/Azure Blob). Furthermore, implement Transparent Replication so that an on-premises volume can failover to a cloud-hosted version without application reconfiguration. Consequently, the storage fabric becomes a global, unified resource.

Module 8: Container Storage & Stateful Workloads

Kubernetes and containers introduce highly dynamic storage requirements that traditional, static storage systems cannot fulfill.

Architectural Implication: Storage must be “Container-Aware.” Initially, you must utilize CSI (Container Storage Interface) drivers to enable dynamic provisioning. Specifically, your storage logic must align Data Locality with pod scheduling—ensuring a pod is not running on a node that is geographically distant from its data. Consequently, stateful workloads in Kubernetes require the same level of durability as traditional VMs.

Module 9: Day-2 Operations & Observability

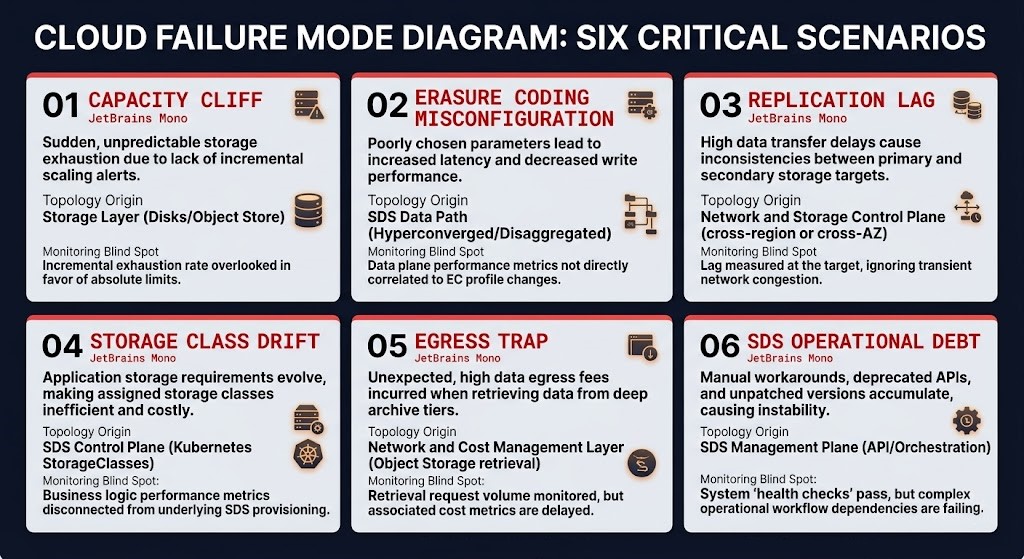

Statistically, storage failures are silent and cumulative; they manifest as “latency creep” long before they cause a hard outage.

Architectural Implication: Observability is as critical as the storage itself. Initially, you must monitor IOPS, Latency, and Throughput at the per-disk and per-VM level. Specifically, Day-2 tasks must include regular “Snapshot Integrity” tests and capacity rebalancing. Consequently, your monitoring suite must be able to correlate a network bottleneck with a storage delay to avoid “mean time to blame” scenarios.

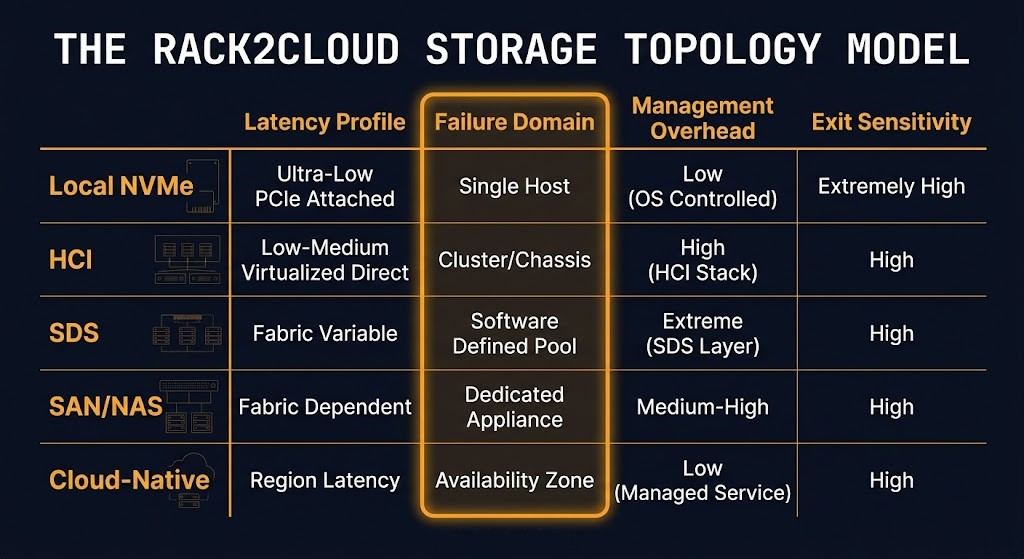

Module 10: Storage Maturity Model & Decision Framework

Importantly, storage maturity is measured by the degree of policy-driven automation and failure resilience.

• Stage 1: Direct-Attached (DAS): Manual, isolated, and high-risk. No global visibility.
• Stage 2: SAN/NAS: Initially, centralized storage but managed as a static “box” with manual LUN mapping.
• Stage 3: Virtualized: Specifically, flexible storage that is aware of hypervisor needs but still relies on external controllers.
• Stage 4: SDS & Policy-Driven: Furthermore, storage is fully software-defined, deterministic, and self-healing.
• Stage 5: Hybrid-Integrated: Finally, achieving a state where data flows elastically between on-prem and cloud based on cost and performance logic.

Frequently Asked Questions (FAQ)

Q: Can Software-Defined Storage (SDS) replace traditional SAN/NAS?

A: Initially, yes. In modern hyper-converged and cloud-native architectures, SDS provides better scale and policy control than traditional centralized hardware.

Q: How does container storage differ from VM storage?

A: Specifically, containers require much more frequent, dynamic provisioning and must be closely coupled with the pod scheduler via CSI drivers to maintain data locality.

Q: Can hybrid storage maintain consistency across sites?

A: Initially, yes, through a combination of asynchronous replication and orchestrated snapshot shipping. However, you must account for the “Physics of Distance” when setting your RPO targets.
