HARDWARE SECURITY

Table of Contents

• Module 1: Why Hardware Security Is Non-Negotiable
• Module 2: First Principles // What Hardware Security Actually Is
• Module 3: Root of Trust // Where Trust Begins
• Module 4: Hardware Security Modules (HSM) Explained
• Module 5: Threat Model // What HSMs Defend Against
• Module 6: HSM Architecture Patterns
• Module 7: HSM Integration with Cloud, K8s, and Bare Metal
• Module 8: Cryptographic Sovereignty & Compliance
• Module 9: Operational Maturity Model
• Module 10: Decision Framework // Strategic Validation
• Frequently Asked Questions (FAQ)
• Additional Resources

Architect’s Summary: This guide provides a deep technical breakdown of hardware-based security strategy. It covers the transition from software-defined secrets to physical, non-extractable cryptographic anchors. Specifically, it is written for security architects and compliance officers designing sovereign systems where the host environment is assumed to be untrusted or hostile.

Module 1: Why Hardware Security Is Non-Negotiable

Specifically, software-based security assumes the underlying host is trustworthy, whereas sovereign security assumes the host is inherently hostile. Hardware security exists to eliminate the “Assumed Trust” gap by answering the ultimate question: Who controls the cryptographic keys? Initially, if your keys reside in system memory or on a general-purpose disk, they are vulnerable to extraction by anyone with root-level access to the OS or hypervisor.

Architectural Implication: You must recognize that without a physical barrier, sovereignty is an illusion. If a cloud provider or an unauthorized administrator can scrape your keys from RAM, your data confidentiality is compromised. Consequently, architects must treat hardware-backed security as the only way to ensure that “Control” remains with the data owner, not the infrastructure provider.

Module 2: First Principles // What Hardware Security Actually Is

To master this strategy, you must define hardware security as the enforcement of cryptographic trust below the operating system layer.

• Non-Extractability: Ensuring encryption keys are generated and stored within a physical boundary that prevents them from being copied.
• Isolated Execution: Performing signing and decryption operations within a dedicated cryptographic processor.
• Verifiable Integrity: Using hardware signatures to prove that firmware and boot loaders have not been tampered with.
• Privileged Access Restriction: Ensuring that physical presence or multi-party authorization is required for key lifecycle changes.

Architectural Implication: Trust becomes mathematical and physical rather than contractual. Initially, you move the security perimeter from the network edge to the silicon itself. Specifically, this ensures that even a total OS compromise cannot lead to the theft of the organization’s root keys.

Module 3: Root of Trust // Where Trust Begins

A Root of Trust (RoT) is the immutable hardware anchor from which all other trust in the system is derived.

It establishes:

• Secure Boot: Verifying the signature of every piece of code before execution.
• Platform Attestation: Providing a provable “identity” for the hardware.
• Chain-of-Trust: Ensuring that if any layer is compromised, the hardware will refuse to unlock cryptographic secrets.

Architectural Implication: Without a hardware Root of Trust, every higher security layer—from the hypervisor to the application—is based on an assumption. Consequently, architects must prioritize hardware that supports TPM (Trusted Platform Module) or Titan-class security chips to anchor their sovereign infrastructure.

Module 4: Hardware Security Modules (HSM) Explained

An HSM is a dedicated, tamper-resistant cryptographic processor designed for the sole purpose of key management and high-velocity signing.

Core Functions:

• Generation: Creating high-entropy keys using hardware-based random number generators.
• Storage: Housing keys in a non-exportable form that destroys the keys if physical tampering is detected.
• Execution: Encrypting, decrypting, or signing data within the HSM’s protected memory.

Architectural Implication: Keys never exist in system memory, they never touch the disk, and they never leave the module. Initially, this creates a “black box” for cryptography. Specifically, the HSM acts as the “Grand Master” of the estate, where applications send data to be signed but never see the key that signs it.

Module 5: Threat Model // What HSMs Defend Against

HSMs are designed to mitigate threats that traditional software-defined security and firewalls cannot reach.

Architectural Implication: This model assume the adversary has high-level access. Initially, you are defending against:

1. Memory Scraping: Attackers searching RAM for raw encryption keys.
2. Cold Boot Attacks: Physically freezing and stealing RAM modules to extract data.
3. Malware/Kernel Compromise: Protecting keys even if the OS is fully controlled by an attacker.
4. Insider Threats: Preventing administrators from “exporting” a key to a personal device.
5. Cloud Provider Access: Ensuring the CSP cannot see your keys, even under legal subpoena.

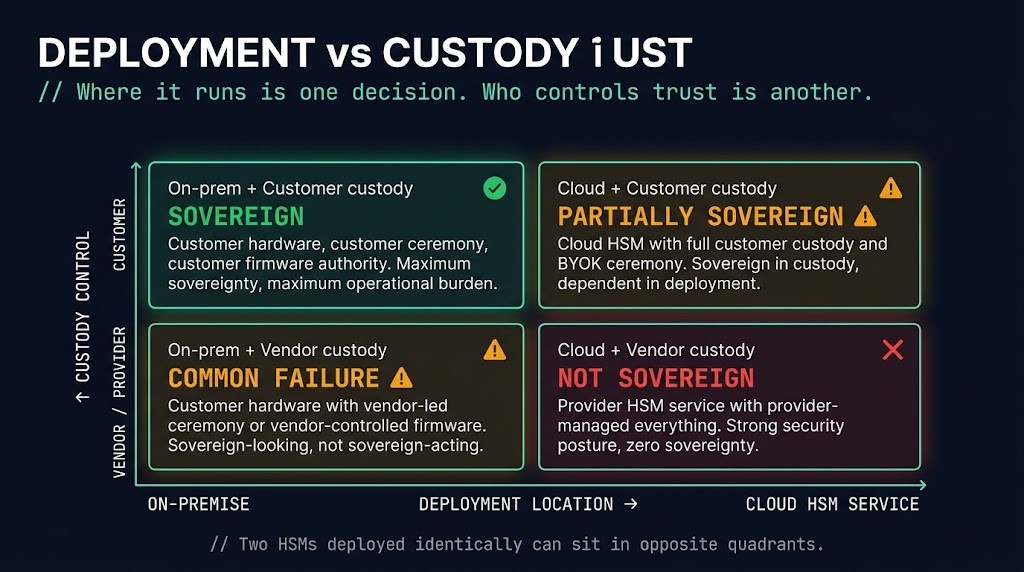

Module 6: HSM Architecture Patterns

The choice of HSM deployment determines who ultimately holds the “Kill Switch” for the organization’s trust.

• Dedicated On-Premise HSM: Initially, providing the highest level of sovereignty. Used where national security or extreme financial risk is involved.
• Cloud-Attached HSM: Specifically, customer-owned hardware located in a provider’s data center but physically isolated from the cloud fabric.
• Hybrid Trust Model: Furthermore, keeping the “Root Keys” on-premise while delegating “Operational Keys” to a cloud-native KMS (Key Management Service).

Architectural Implication: Architecture determines who can revoke trust. Initially, a hybrid model offers a balance between cloud speed and sovereign control. Consequently, architects must ensure the “Root of Trust” always resides in the highest-controlled domain.

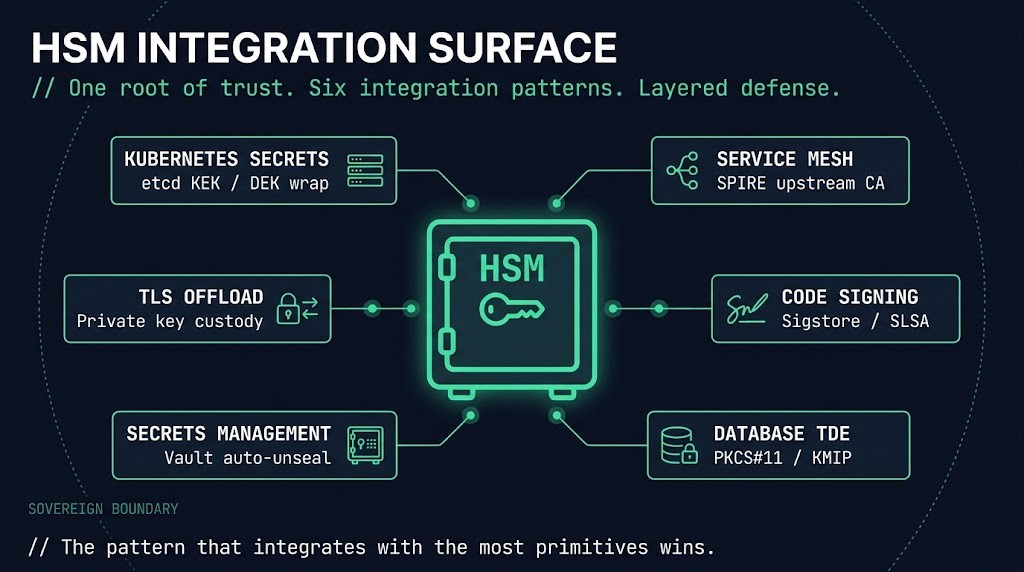

Module 7: HSM Integration with Cloud, Kubernetes, and Bare Metal

Initially, hardware trust is not a standalone island; it must be integrated into the automated workflows of modern platforms.

• TLS Offloading: Storing the private keys for web certificates in an HSM to prevent interception.
• Kubernetes Secrets: Specifically, using an HSM to encrypt the etcd database where container secrets are stored.
• Code Signing: Ensuring that only authorized pipelines can sign software updates using HSM-protected keys.

Architectural Implication: In Kubernetes, HSM-backed secrets prevent node-level key exfiltration. Initially, if a pod is compromised, the attacker cannot steal the underlying master key because it is never present in the container runtime. Consequently, hardware trust significantly strengthens the “Zero Trust” posture of container platforms.

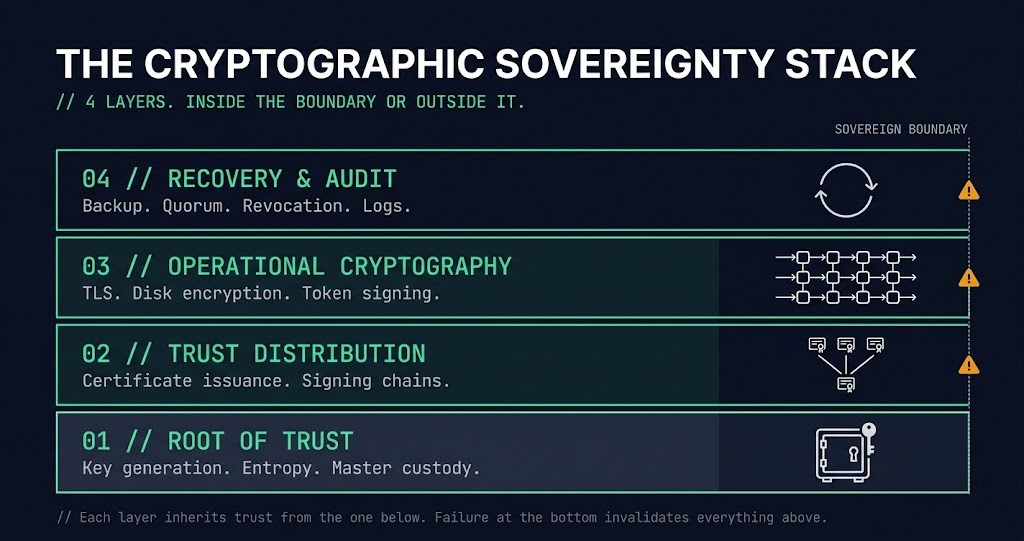

Module 8: Cryptographic Sovereignty & Compliance

Hardware security is the technical prerequisite for achieving modern data compliance and national sovereignty mandates.

Initially, it enables strict adherence to FIPS 140-2/3, PCI DSS, and HIPAA. Regulators are increasingly focused on “Key Custody”—who has the technical ability to view data—rather than just “Data Residency”—where the bits are stored. Specifically, sovereign mandates often require that cryptographic operations occur under local jurisdiction. Therefore, an HSM provides the “Physical Proof” required for legal non-repudiation.

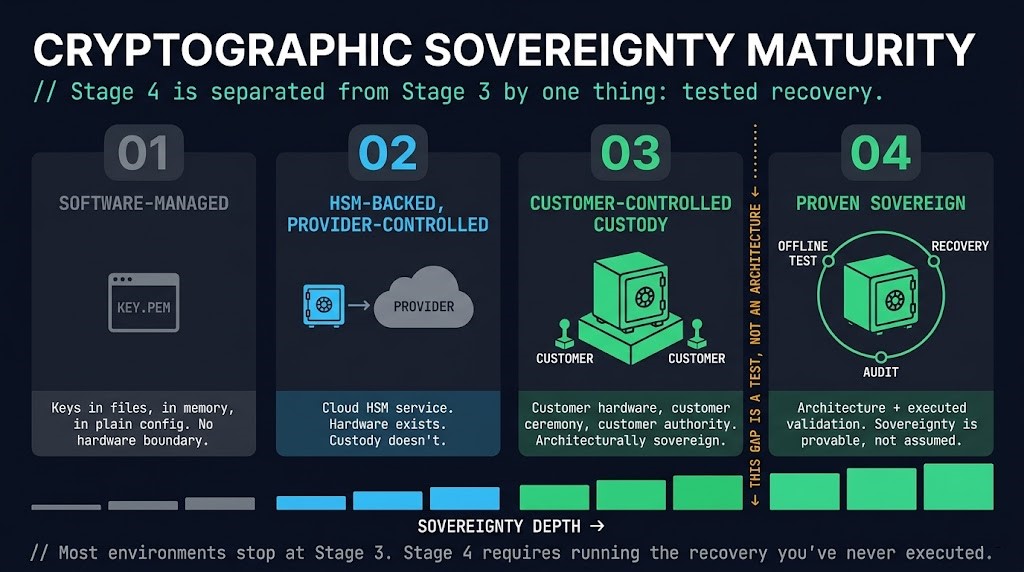

Module 9: Operational Maturity Model

Importantly, maturity is measured by the physical impossibility of key extraction, regardless of administrator privilege.

• Stage 1: Software-Only: Keys exist in plain text in config files or OS memory. High risk of theft.
• Stage 2: Encrypted Disks: Initially, protecting data at rest, but keys are still vulnerable in memory.
• Stage 3: Centralized KMS: Specifically, improved governance, but the provider or admin may still have a path to the keys.
• Stage 4: HSM-Backed: Finally, keys are non-extractable. Trust is anchored in dedicated hardware.
• Stage 5: Root-of-Trust Ecosystems: Provable security from the silicon power-on to the application runtime.

Module 10: Decision Framework // When Hardware Security Is Mandatory

Ultimately, hardware security is the foundation of digital sovereignty; it is mandatory when software-based trust is no longer sufficient for the risk profile.

Choose to implement HSMs when regulatory frameworks mandate strict key custody or when you are operating in a multi-tenant cloud environment where you cannot trust the provider’s administrators. Furthermore, it is a requirement when nation-state threat models apply to your data. Conversely, if losing a single encryption key would be a business-ending event, software is not enough. Consequently, hardware security is a non-negotiable architectural requirement.

Frequently Asked Questions (FAQ)

Q: Is encryption without an HSM sufficient for security?

A: No. Initially, encryption without hardware protection is a “locked door with the key left under the mat.” If the host is compromised, the key is easily found.

Q: Can we use HSMs in a cloud-native environment?

A: Specifically, yes. Most major cloud providers offer Cloud HSM services where the hardware is physically isolated and the keys remain under customer control.

Q: Do HSMs slow down my application?

A: Initially, they can add slight latency due to the network trip to the module. However, modern HSMs are high-performance processors capable of thousands of operations per second.
