MICROSERVICES ARCHITECTURE

Table of Contents

• Module 1: The Microservices Control Plane // Distributed by Design
• Module 2: First Principles // What Microservices Actually Are
• Module 3: Operating Model // Teams, Ownership, and Autonomy
• Module 4: Microservices Architecture Patterns
• Module 5: Economics & Cost Physics // Scaling Without Waste
• Module 6: Microservices Security // Zero Trust at Service Level
• Module 7: Workload Strategy // Stateful vs. Stateless Services
• Module 8: Microservices as a Platform
• Module 9: Migration & Decomposition Patterns
• Module 10: Decision Framework // Strategic Validation
• Frequently Asked Questions (FAQ)
• Additional Resources

Architect’s Summary: This guide provides a deep technical breakdown of microservices architecture strategy, covering logical control planes, decentralized data management, and service-level security. Specifically, it is written for cloud architects, platform engineers, and IT leaders designing production-grade distributed systems.

Module 1: The Microservices Control Plane // Distributed by Design

Specifically, microservices architecture replaces centralized application stacks with distributed, independently deployable services. Each service owns its runtime, data, and lifecycle to ensure total independence. Initially, the “control plane” in microservices is logical rather than physical. It relies on APIs to define boundaries and orchestrators to manage the service lifecycle.

Architectural Implication: Microservices do not reduce complexity—they redistribute it. The primary goal is to localize complexity within bounded contexts rather than concentrate it in monoliths. Furthermore, observability must provide total system visibility to manage this redistribution effectively. Consequently, automation is required to ensure consistency across the distributed estate.

Module 2: First Principles // What Microservices Actually Are

To master this strategy, you must recognize that microservices are defined by architectural discipline rather than service count.

• Single Responsibility: Each service owns exactly one business capability.
• Independent Deployment: Services can be released without coordinating with other teams or services.
• Decentralized Data: Each service owns its data store to avoid tight coupling at the database layer.
• Explicit Communication: All interactions occur via versioned APIs or asynchronous events.
• Failure Isolation: A failing service must be designed not to cascade system-wide failure.

Module 3: Operating Model // Teams, Ownership, and Autonomy

This section explains the microservices operating model to ensure total organizational alignment. Microservices require an organizational shift toward autonomous units. Initially, small teams own the entire lifecycle of a service, including build, deploy, and runtime behavior. Furthermore, teams must adhere to API contracts that are backward-compatible. Without this alignment, microservices quickly degrade into “distributed monoliths” that are difficult to manage.

Module 4: Microservices Architecture Patterns

Specifically, microservices rely on well-defined patterns to contain failure and enable global scale.

• API Gateway: Provides centralized ingress for routing, authentication, and throttling.
• Service Discovery: Manages the dynamic location of services at runtime.

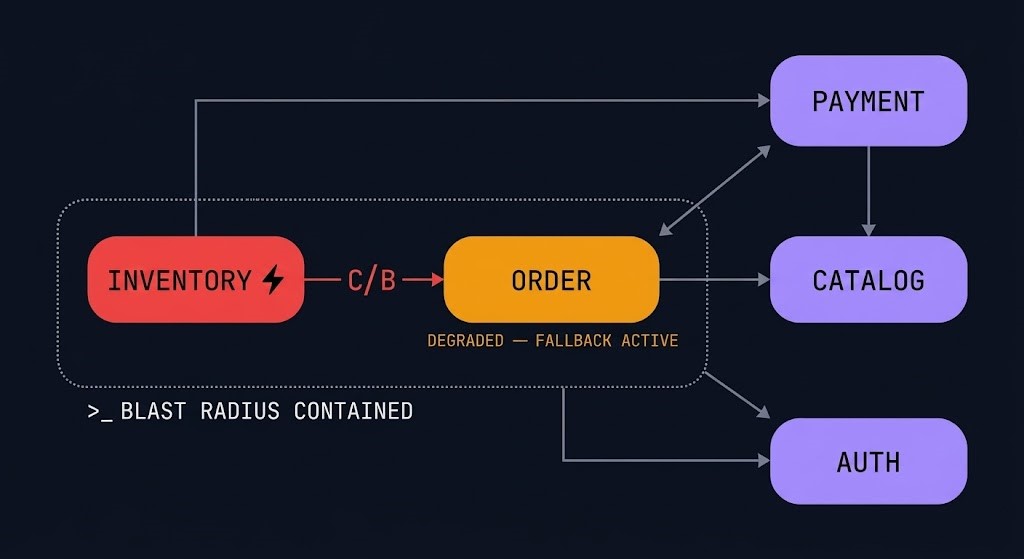

• Circuit Breakers: Prevent cascading failures by failing fast when a downstream service is unhealthy.
• Event-Driven Messaging: Decouples producers and consumers via asynchronous communication.
• Saga Pattern: Manages distributed transactions across services without using complex database locks.

Module 5: Economics & Cost Physics // Scaling Without Waste

Importantly, microservices economics are driven by selective scaling rather than broad resource allocation. This allows for extreme efficiency but requires rigorous FinOps governance.

Architectural Implication: Initially, you scale only the specific services under heavy load. Smaller services allow for better “bin-packing” on compute clusters. However, as systems become more distributed, cross-zone network traffic becomes a primary cost factor. Finally, FinOps must evolve to provide cost observability at the service level rather than the VM level.

Module 6: Microservices Security // Zero Trust at Service Level

Specifically, security in microservices is identity-driven rather than network-driven.

Architectural Implication: Every service must authenticate explicitly using a verifiable identity. Service-to-service traffic should be encrypted via Mutual TLS (mTLS) to prevent interception. Furthermore, access decisions must occur at the API layer at request time. Consequently, secrets management ensures that credentials remain short-lived and centrally managed. Security thus shifts left and becomes a continuous, automated process.

Module 7: Workload Strategy // Stateful vs. Stateless Services

Specifically, architects must classify services correctly to avoid system fragility. * Stateless Services: Initially, these are ideal for horizontal scaling and fault tolerance.

• Stateful Services: Specifically, these require careful data management and replication strategies to maintain consistency.
• Event Consumers: Furthermore, these are optimized for asynchronous processing and background tasks.
• Edge Services: Finally, these handle the high-traffic ingress, authentication, and initial routing for the cluster.

Module 8: Microservices as a Platform

Initially, successful microservices require robust platform support to prevent operational fragmentation. Without a platform, teams inevitably reinvent basic patterns.

Architectural Implication: A mature platform provides standardized CI/CD pipelines, centralized observability, and service catalogs. Specifically, it should offer self-service provisioning to reduce the cognitive load on product teams. Furthermore, the platform must enforce global security and compliance policies automatically. Consequently, the goal is to provide a “Golden Path” that balances developer autonomy with architectural integrity.

Module 9: Migration & Decomposition Patterns

Importantly, microservices adoption should be an incremental process to minimize systemic risk. Success depends on identifying logical boundaries within existing monoliths.

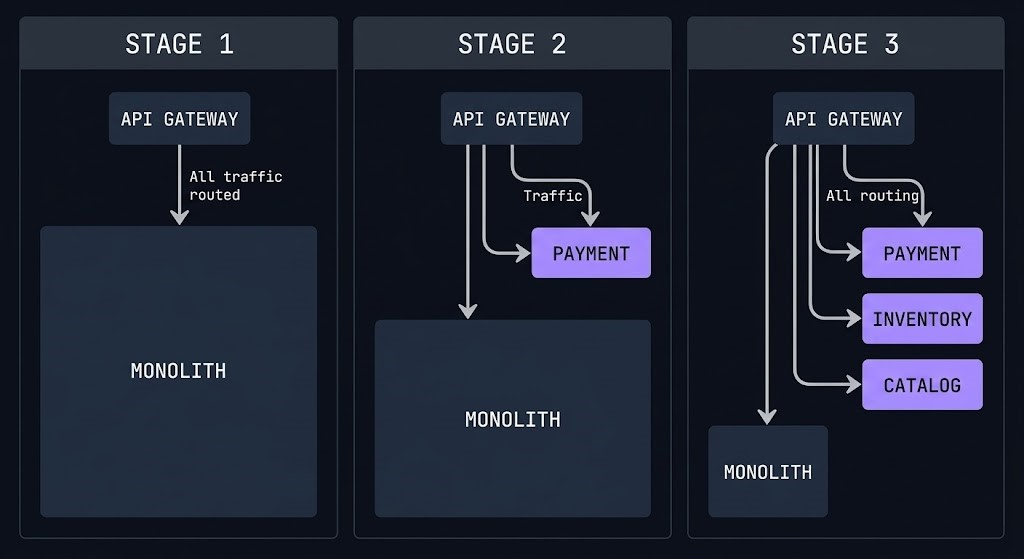

• Strangler Fig Pattern: Initially, you replace monolith functionality by intercepting calls and routing them to new services.
• Domain Decomposition: Specifically, split systems based on business capabilities or “Bounded Contexts”.
• API Façade: Furthermore, expose new microservices behind existing interfaces to maintain client compatibility.
• Parallel Run: Finally, validate the behavior of new services against the legacy system before a full cutover.

Module 10: Decision Framework // Strategic Validation

Ultimately, microservices are a strategic multiplier that amplifies both organizational strengths and architectural weaknesses.

Choose microservices when your change frequency is high and independent scaling is a technical requirement. Furthermore, they are ideal for organizations with autonomous teams that can manage their own DevOps lifecycles. Conversely, you should avoid microservices if your systems are simple or if your team maturity is low. Therefore, the decision must be based on whether the benefits of failure isolation outweigh the burden of operational overhead.

Frequently Asked Questions (FAQ)

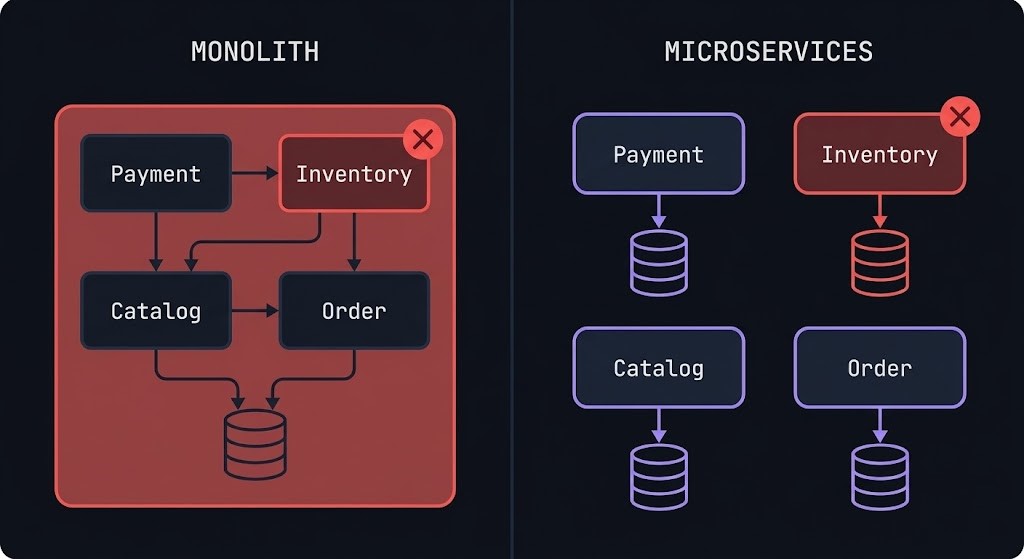

Are microservices always better than monoliths? No. Initially, monoliths are often simpler and more efficient for small systems or low-complexity applications.

Do microservices require Kubernetes? Specifically, Kubernetes helps manage the complexity, but microservices can run on any orchestrated platform or serverless runtime.

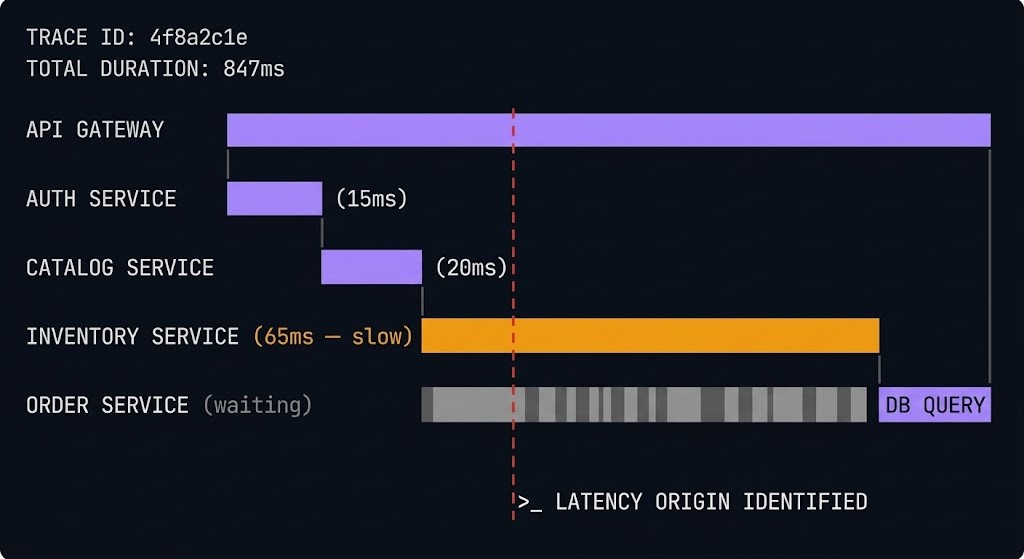

What is the biggest risk in microservices? The biggest risk is distributed failure without proper observability and governance. Consequently, architects must prioritize monitoring and failure isolation patterns.
