Architect’s Summary: This guide provides a deep technical breakdown of high-performance networking for AI. In distributed AI, the network is no longer a transport layer—it is a functional extension of the GPU memory bus. Specifically, it is written for infrastructure architects and network engineers designing the lossless, low-latency fabrics required for linear scale-out training.

Module 1: The Fabric Hero // Networking Becomes the System

Specifically, in the context of distributed AI, the network has evolved from infrastructure plumbing into a core computational dependency. Modern AI workloads do not just “use” the network; they depend on it for the synchronous update of billions of model parameters across hundreds of GPUs. Initially, you must recognize that if your network fabric is non-deterministic, your AI training time becomes unpredictable.

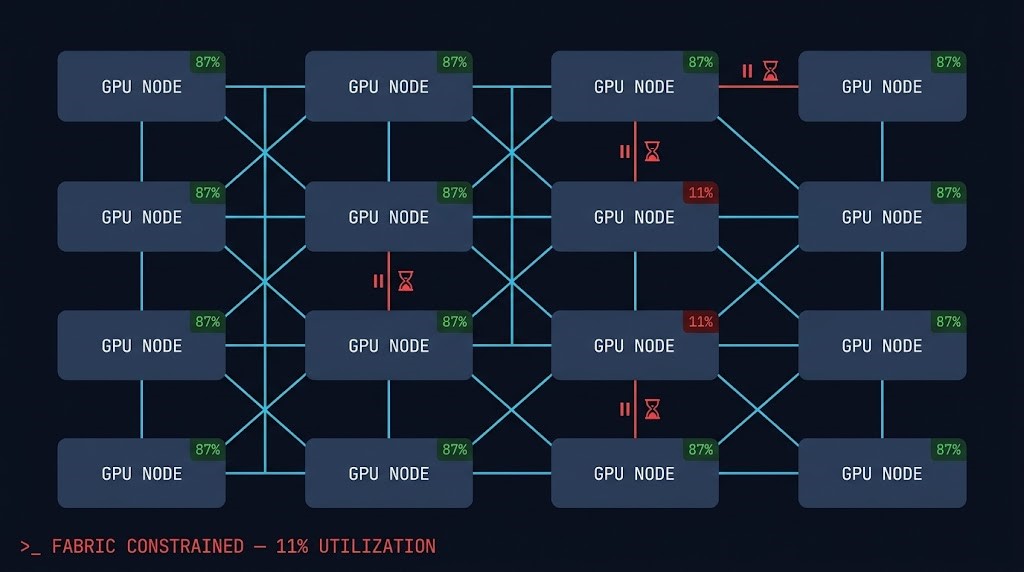

Architectural Implication: You must design the fabric as a unified system. If your network introduces variable latency, your GPUs will sit idle waiting for parameter synchronization—a phenomenon known as “Communication Overhead.” Consequently, architects must treat the network as the primary governor of GPU utilization.

Module 2: First Principles // Latency, Bandwidth & Jitter

To master this pillar, you must accept that AI fabrics obey the rigid laws of physics where microseconds determine the success of a multi-million dollar training run.

• Deterministic Latency: Initially, latency directly impacts “Gradient Synchronization.” Even a minor spike can stall an entire cluster.
• Lossless Delivery: Specifically, packet loss is catastrophic in AI training, as it triggers retries that amplify congestion exponentially.
• Jitter Control: Furthermore, variability in packet arrival times (jitter) creates synchronization “bubbles,” where fast nodes wait for slow packets.

Architectural Implication: Traditional enterprise Ethernet is designed for “best-effort” delivery, which is fundamentally incompatible with AI training. Therefore, the architecture must enforce a Lossless Transport policy.

Module 3: RDMA Fundamentals // Zero-Copy Data Movement

RDMA (Remote Direct Memory Access) is the foundational technology that allows a GPU to read or write data directly into the memory of a remote node without involving either node’s operating system.

Key Properties:

• Kernel Bypass: Initially, data moves without the overhead of context switching between user and kernel space.
• Zero-Copy: Specifically, data is transferred directly from memory to the network interface, eliminating multiple internal RAM copies.
• CPU Offload: Furthermore, the network hardware handles the transport logic, leaving CPU cycles free for orchestration.

Architectural Implication: RDMA is the only way to achieve predictable latency. Initially, without RDMA, distributed training scaling is hindered by CPU contention. Consequently, RDMA-capable NICs (RNICs) are a mandatory requirement for any AI cluster.

Module 4: InfiniBand Architecture // Lossless AI Fabrics

InfiniBand is a purpose-built, credit-based, lossless interconnect designed specifically for the extreme demands of high-performance compute (HPC).

Core Characteristics:

• Native Lossless Transport: Initially, hardware-based flow control ensures buffers never overflow.
• Ultra-Low Latency: Specifically, cut-through switching minimizes the delay at every hop.
• NCCL Optimization: Furthermore, InfiniBand provides native support for the NVIDIA Collective Communications Library (NCCL).

Architectural Implication: InfiniBand is not just “faster Ethernet”; it is a different network philosophy. Initially, it provides the Linear Scale-Out required for models that exceed the memory capacity of a single node.

Module 5: Ethernet-Based RDMA (RoCE)

RoCE (RDMA over Converged Ethernet) brings RDMA semantics to standard Ethernet environments, providing a bridge between traditional networking and AI requirements.

• RoCE v1: Initially, a Layer-2 implementation restricted to a single broadcast domain.
• RoCE v2: Specifically, a Layer-3 implementation that uses UDP/IP for routable, multi-rack scaling.
• Requirements: Furthermore, it requires Priority Flow Control (PFC) and Explicit Congestion Notification (ECN) to simulate a lossless environment.

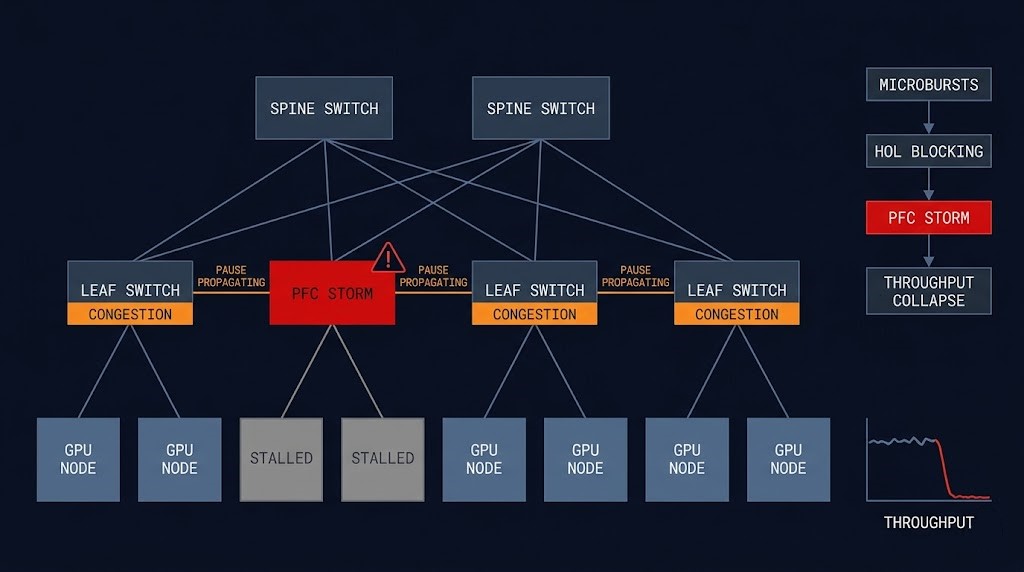

Architectural Implication: Misconfigured RoCE is worse than no RDMA at all. Initially, if PFC and ECN are misaligned, you will experience “PFC Storms” and head-of-line blocking. Consequently, RoCE requires significant Day-2 operational rigor to maintain performance.

Module 6: GPU-to-GPU Communication Patterns

Distributed training relies on “Collectives”—mathematical patterns of data exchange that must be optimized by the network topology.

• AllReduce: Initially, the most common pattern where all GPUs sum their gradients and broadcast the result.
• GPUDirect RDMA: Specifically, allowing the NIC to pull data directly from GPU memory (HBM) rather than going through System RAM.
• NVLink: Furthermore, using high-speed intra-node interconnects to complement the inter-node fabric.

Architectural Implication: Your network topology must match your communication pattern. Initially, a Fat-Tree or Dragonfly topology is used to ensure non-blocking bandwidth for all-to-all collectives.

Module 7: Fabric Orchestration & Operations

AI fabrics require active, real-time orchestration rather than static “set-and-forget” switch configurations.

Architectural Implication: You must implement a Fabric Management layer. Initially, InfiniBand relies on a Subnet Manager (SM) to calculate optimal routes. Specifically, you must use telemetry exporters to monitor for “Congestion Storms.” Furthermore, ensure your Kubernetes CNI is RDMA-aware to expose these high-speed paths to containerized workloads. Consequently, static network designs cannot support the dynamic burst patterns of AI training.

Module 8: Cost, Scale & Power Economics

High-performance fabrics carry a significant cost premium; architectural efficiency is the only way to justify the ROI.

Architectural Implication: Fabric economics should be evaluated per “GPU Training Hour,” not per switch port. Initially, expensive InfiniBand optics are justified if they increase GPU utilization from 40% to 90%. Specifically, you should implement Tiered Fabric Designs where training happens on InfiniBand, while inference and management use standard Ethernet. Therefore, right-sizing the interconnect bandwidth prevents overspending on low-impact nodes.

Module 9: Failure Domains & Fault Containment

AI fabrics fail in unique, often silent ways that can invalidate weeks of training if not contained.

Architectural Implication: Design for partial failure. Initially, implement Multi-Path Routing to route around link flaps. Furthermore, utilize Job Checkpointing so that a network-induced crash doesn’t require restarting from zero. Specifically, your scheduler must be capable of rapid node isolation—automatically cordoning off a “noisy” NIC before it causes a cluster-wide synchronization stall.

Module 10: Decision Framework // Strategic Validation

Ultimately, choosing a fabric is a decision regarding cluster scale and operational maturity.

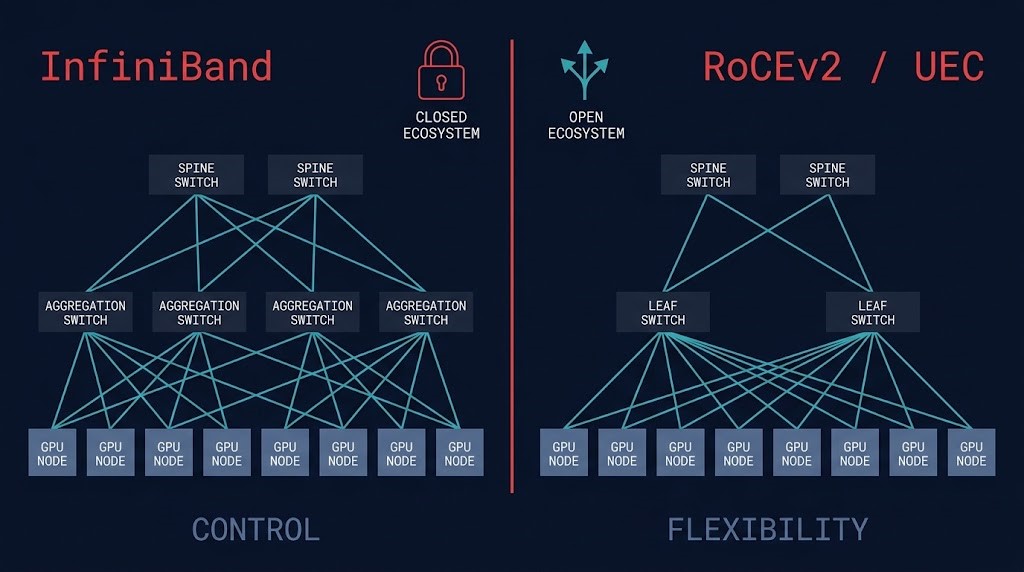

Use InfiniBand for large-scale, dedicated training clusters where deterministic performance is the primary metric. Conversely, use RoCE v2 for hybrid environments where you must leverage existing Ethernet investments. Avoid standard, non-lossless Ethernet for any multi-node GPU collectives. Furthermore, factor in your team’s operational maturity; InfiniBand requires specialized knowledge, while RoCE requires deep expertise in DCB (Data Center Bridging) protocols. Consequently, the fabric must align with your model’s “Maximum Tolerable Synchronization Latency.”

Frequently Asked Questions (FAQ)

Q: Is InfiniBand required for all AI workloads?

A: No. Initially, InfiniBand is essential for large-scale distributed training. For inference or small-scale fine-tuning, high-speed 100G/200G Ethernet is often sufficient.

Q: Can Kubernetes run on InfiniBand fabrics?

A: Specifically, yes. This requires using the SR-IOV Device Plugin and a Multus-based CNI configuration to allow containers to access the InfiniBand interfaces directly.

Q: What is the most common cause of AI fabric failure?

A: Initially, misconfigured congestion control (ECN/PFC). Without these properly tuned, the fabric will suffer from silent packet drops, leading to massive performance degradation.
