MODERN NETWORKING LOGIC

Table of Contents

• Module 1: Why Networking Became the Control Plane
• Module 2: First Principles // How Packets Actually Move
• Module 3: Software-Defined Networking (SDN) Fundamentals
• Module 4: Segmentation, Zero Trust & Policy Enforcement
• Module 5: Routing, Latency & Failure Domains
• Module 6: Hybrid & Multi-Cloud Networking Patterns
• Module 7: Kubernetes & Overlay Networking
• Module 8: Day-2 Operations & Network Observability
• Module 9: Networking Maturity Model
• Module 10: Decision Framework // Strategic Validation
• Frequently Asked Questions (FAQ)
• Additional Resources

Architect’s Summary: This guide provides a deep technical breakdown of modern networking architecture. It shifts the perspective from physical cabling to software-defined policy engines. Specifically, it is written for network architects, SREs, and security engineers designing high-velocity, zero-trust fabrics that span on-premises and multi-cloud environments.

Module 1: Why Networking Became the Control Plane

Specifically, modern systems do not fail because physical servers go down; they fail because traffic flows are either misrouted or blocked by misaligned policies. Networking has transitioned from a static infrastructure component into an active control plane that dictates security, reliability, and performance. Initially, you must recognize that in the era of distributed systems, the network is the only layer capable of enforcing global intent across fragmented environments.

Architectural Implication: You must move from managing ports to managing identity-aware policies. If your network treats every packet behind the firewall as “trusted,” your perimeter-based security is a liability. Consequently, networking must be designed as the ultimate enforcement layer, where connectivity is granted based on explicit verification rather than physical location.

Module 2: First Principles // How Packets Actually Move

To master this pillar, you must accept that while abstractions like SDN exist, every packet still obeys the immutable laws of physics.

• East-West Dominance: Initially, recognize that internal traffic between services (east-west) now vastly exceeds traffic entering or leaving the data center (north-south).
• Latency Physics: Latency variability (jitter) often breaks distributed applications faster than a total outage.
• Congestion Collapse: Retries and timeouts amplify network congestion, leading to a self-reinforcing failure loop.

Architectural Implication: Modern networking designs must optimize for deterministic paths rather than just aesthetic diagrams. Initially, you must minimize the number of hops and encapsulations that a packet undergoes. Therefore, reducing tail-latency is as critical to the architecture as ensuring raw bandwidth.

Module 3: Software-Defined Networking (SDN) Fundamentals

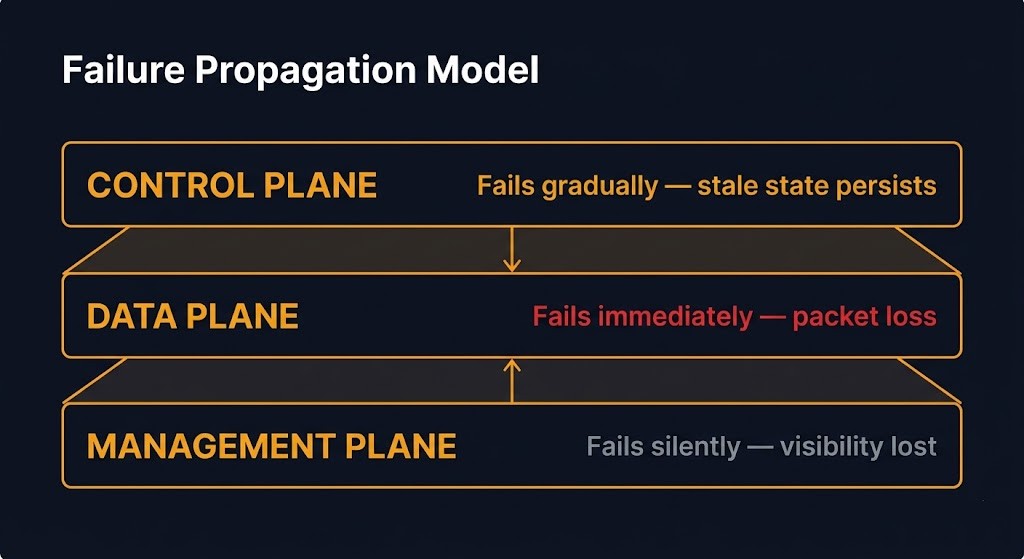

SDN is not a specific software product; it is an architectural pattern that separates the “brain” (Control Plane) from the “muscles” (Data Plane).

Architectural Implication: By separating these planes, you enable centralized policy enforcement and dynamic path selection. Initially, the Control Plane defines the intent (e.g., “Web servers can only talk to Database servers”), and the Data Plane executes the packet forwarding at line rate. Specifically, this allows for automated segmentation and rapid response to network failures without manual switch configuration. Consequently, SDN provides the agility required for cloud-native operations.

Module 4: Segmentation, Zero Trust & Policy Enforcement

Modern networking assumes breach; the network must therefore act as a distributed firewall where every connection is explicitly authorized.

• Microsegmentation: Initially, moving beyond coarse VLANs to fine-grained isolation where every workload is encapsulated in its own security boundary.
• Identity over IP: Specifically, basing access on the “Identity” of the service (e.g., SPIFFE IDs) rather than its volatile IP address.
• Continuous Verification: Furthermore, the network must continuously verify that the entity requesting access is still authorized.

Architectural Implication: The network becomes a policy engine. Initially, the goal is to reduce the “Blast Radius” of a compromise. Therefore, a flat network fabric is an unacceptable risk in a modern sovereign or cloud-native estate.

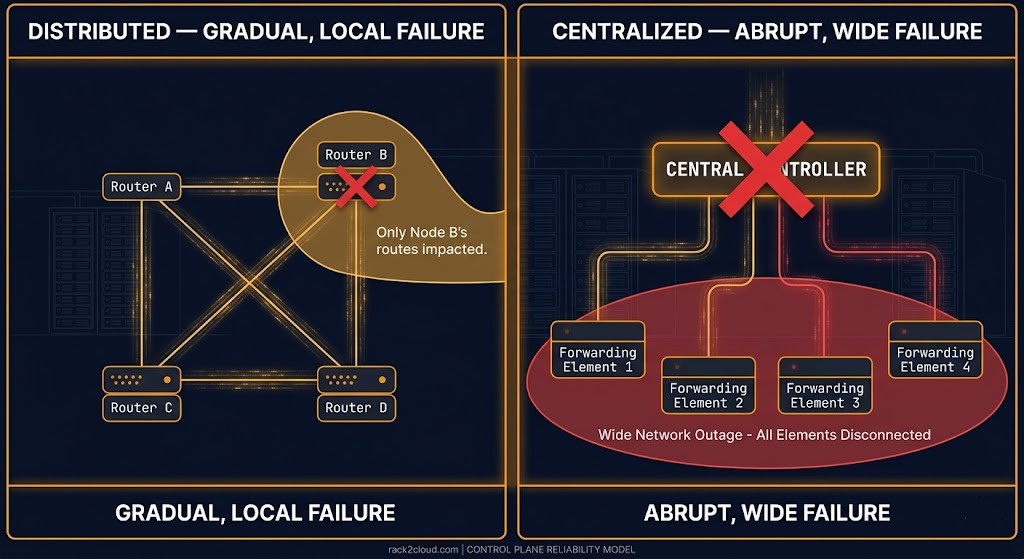

Module 5: Routing, Latency & Failure Domains

Every routing decision you make defines a potential failure domain; a misconfigured route can take down an entire region.

Architectural Implication: Modern routing design focuses on fast convergence and predictable failover. Initially, you must design networks that “fail locally.” Specifically, if a link in one availability zone fails, the routing protocol should contain that event within the zone rather than causing a global recalculation. Consequently, using BGP as the “Source of Truth” for internal routing has become the standard for achieving deterministic scale.

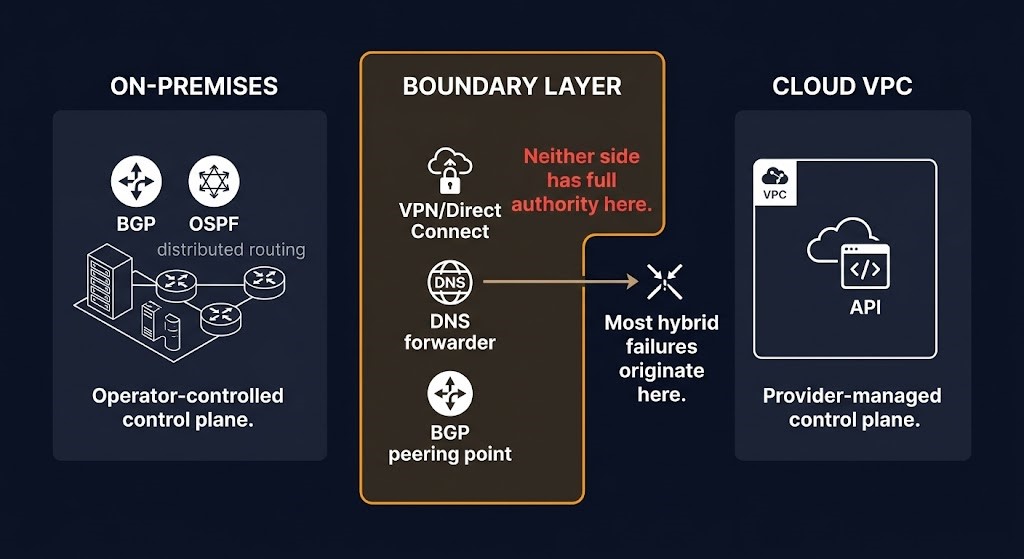

Module 6: Hybrid & Multi-Cloud Networking Patterns

Connectivity between clouds is easy; maintaining policy consistency across them is the true architectural challenge.

Architectural Implication: Hybrid networking must move beyond simple VPNs or Direct Connects. Initially, you should utilize Hub-and-Spoke Transit models to centralize egress and ingress controls. Furthermore, implement Identity-Aware Routing that translates security labels between on-premises fabrics (like Nutanix Flow or NSX) and cloud-native security groups. Consequently, without this discipline, your hybrid network will become an un-debuggable collection of “special cases.”

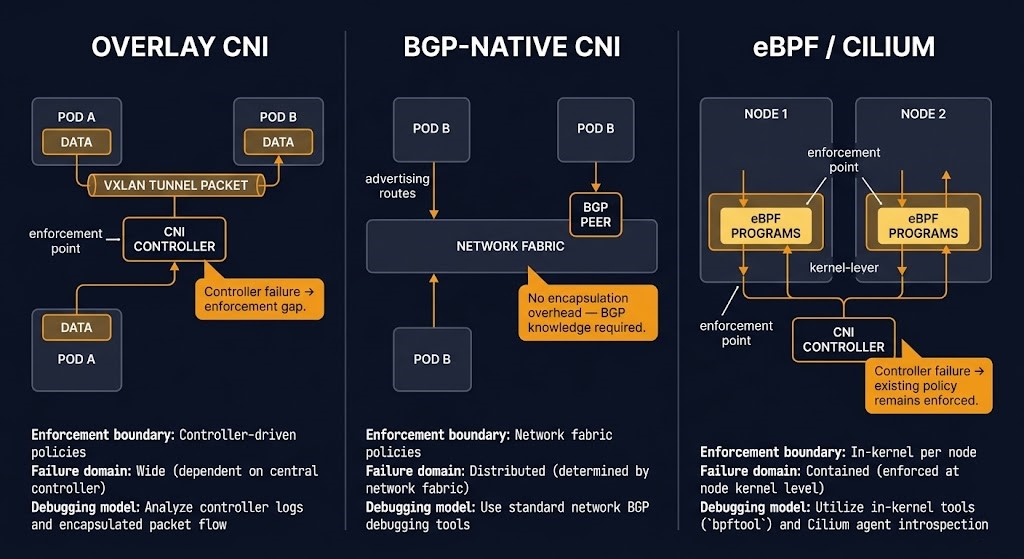

Module 7: Kubernetes & Overlay Networking

Kubernetes introduces a layer of abstraction—the overlay network—that must be carefully aligned with the underlying physical network (the underlay).

• Encapsulation Overhead: Initially, be aware that VXLAN or Geneve encapsulation reduces MTU and adds CPU overhead.
• Service Meshes: Specifically, using tools like Istio or Linkerd to manage Layer-7 traffic logic and mutual TLS (mTLS).
• Network Policies: Furthermore, ensuring that Kubernetes-native policies are enforced at the CNI layer to prevent unauthorized pod-to-pod communication.

Architectural Implication: Networking must align from the physical cable up to the application identity. Initially, any mismatch between underlay MTU and overlay requirements will lead to fragmented packets and performance degradation.

Module 8: Day-2 Operations & Network Observability

Statistically, most network outages are configuration-induced rather than hardware-driven.

Architectural Implication: If you cannot answer “Why was this packet dropped?” in real-time, your network is not observable. Initially, Day-2 operations require deep Flow Visibility and Latency Monitoring. Specifically, you must use eBPF or VPC Flow Logs to audit policy enforcement. Consequently, the network must provide the telemetry required to distinguish between an application timeout and a network-level discard.

Module 9: Networking Maturity Model

Importantly, maturity is measured by how quickly business intent is translated into enforceable network policy.

• Stage 1: Static: Manual VLANs and IP-based firewalls; opaque and fragile.
• Stage 2: Automated: Initially, fast provisioning but lacks a centralized policy engine.
• Stage 3: Policy-Driven: Specifically, the network is managed via SDN patterns with predictable failover.
• Stage 4: Identity-Aware: Furthermore, security is decoupled from IP addresses; zero-trust is the default.
• Stage 5: Self-Healing: Finally, the network automatically reroutes around failures and remediates policy drift.

Module 10: Decision Framework // When Networks Fail

Ultimately, modern networks should be boring, observable, and deterministic.

You are “doing it wrong” if your security relies on IP addresses or if a network segment change requires a manual support ticket. Furthermore, if outages require extensive “packet captures” to diagnose, your observability is insufficient. Conversely, if your hybrid traffic behaves identically regardless of location and your segmentation is enforced by identity, you have achieved a modern state. Consequently, if a routing change in one site impacts the latency of an unrelated site, your failure domains are improperly designed.

Frequently Asked Questions (FAQ)

Q: Is Software-Defined Networking (SDN) only for the cloud?

A: No. Initially, SDN principles are equally critical for on-premises and sovereign infrastructure to reduce manual errors and provide cloud-like agility.

Q: Does Zero Trust networking add significant latency?

A: Specifically, no. When properly architected using hardware-accelerated encryption and localized policy enforcement, the performance impact is negligible compared to the massive reduction in blast radius.

Q: Can we move to modern networking without replacing our switches?

A: Initially, yes. You can implement overlay networking (like VXLAN) and software-based firewalls to bring modern logic to existing hardware fabrics.
