Gateway API Is the Direction. Your Controller Choice Is the Risk.

Gateway API Kubernetes adoption is settled. The project has made its call — GA in 1.31, role-based model, the ecosystem is moving. That decision is not the hard part. Gateway API is GA. The Ingress API is not going away, but it is not where the ecosystem is investing.

That decision is made. What isn’t made — and what most guides skip entirely — is the controller decision that sits underneath it. Gateway API defines the routing model. It does not define what runs your traffic, how that component behaves under load, or what happens when it restarts in a cluster with five hundred routes and an incident already in progress. That’s the controller decision. And it’s where the architectural risk actually lives.

This post covers what the controller decision actually hinges on: failure modes, Day-2 behavior, and the operational tradeoffs that don’t appear in comparison matrices. If you want a feature checklist, there are dozens of those. This is the analysis that comes after you’ve already picked a direction and need to know what will break.

Gateway API defines the model. Your controller choice determines the blast radius.

Gateway API Kubernetes: Why the Controller Decision Matters

Gateway API graduated to GA in Kubernetes 1.31. The role-based model — GatewayClass, Gateway, HTTPRoute — separates infrastructure concerns from application routing in a way the original Ingress API was never designed to do. For platform teams managing multi-tenant clusters, this separation is architecturally significant: app teams manage their HTTPRoutes, platform teams own the Gateway and GatewayClass, and the permission model is explicit rather than annotation-based.

The migration from Ingress to Gateway API is well-documented at the spec level. What’s less documented is the operational delta between controllers that implement it. Two clusters running Gateway API with different controllers can behave completely differently under the same failure condition. The API is standardized. The runtime behavior is not.

That’s the gap this post addresses.

The Fork That Matters: Ingress API vs Gateway API

Before the controller decision, the API model decision — because the two are not interchangeable and your controller selection is downstream of it.

The Ingress API (networking.k8s.io/v1) is stable, universally supported, and battle-tested. It handles HTTP/HTTPS routing with host and path matching. It also handles almost nothing else without controller-specific annotations — which is where the operational debt starts accumulating in year two and compounds quietly through year five.

The Gateway API is the successor — graduated to GA in Kubernetes 1.31. Typed resources, explicit cross-namespace permission grants via ReferenceGrant, expressive routing rules that live in version-controlled manifests rather than annotation strings. For new clusters, it is the correct default. For existing clusters with years of Ingress annotations in production, migration has a cost that needs to be planned rather than assumed away.

Pick the API model first. The controller decision follows from it — not the other way around.

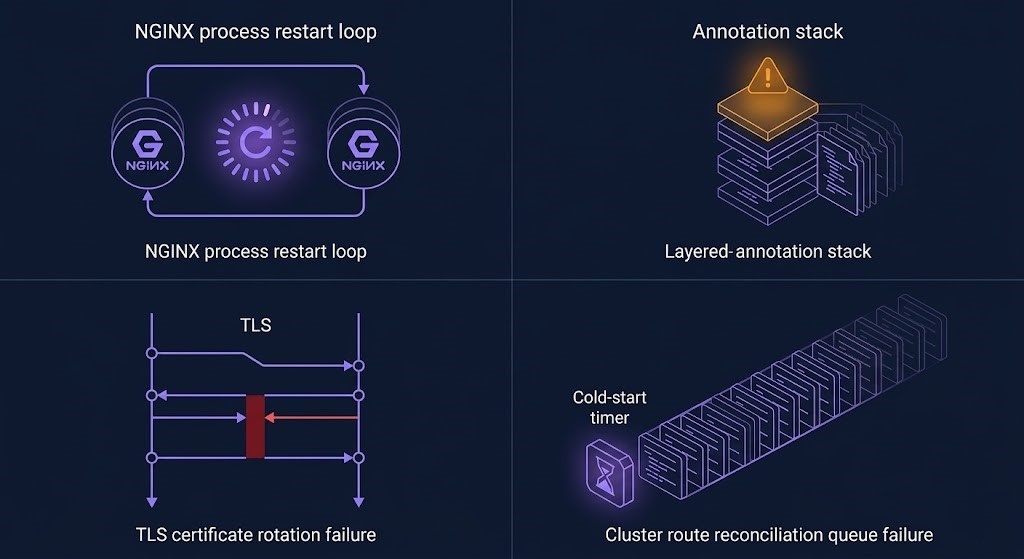

Where Kubernetes Ingress Controllers Actually Fail

The ingress-nginx deprecation path has pushed a lot of teams into controller evaluation mode. Most of that evaluation happens at the feature level. Here’s what happens at the operational level — the failure modes that surface after the controller is in production.

None of these failure modes appear in controller documentation. All of them will surface in production if you haven’t accounted for them in your architecture. The Kubernetes Day-2 incident patterns follow a consistent shape: the configuration was correct, the failure mode was structural, and it only became visible under the specific load condition that triggers it.

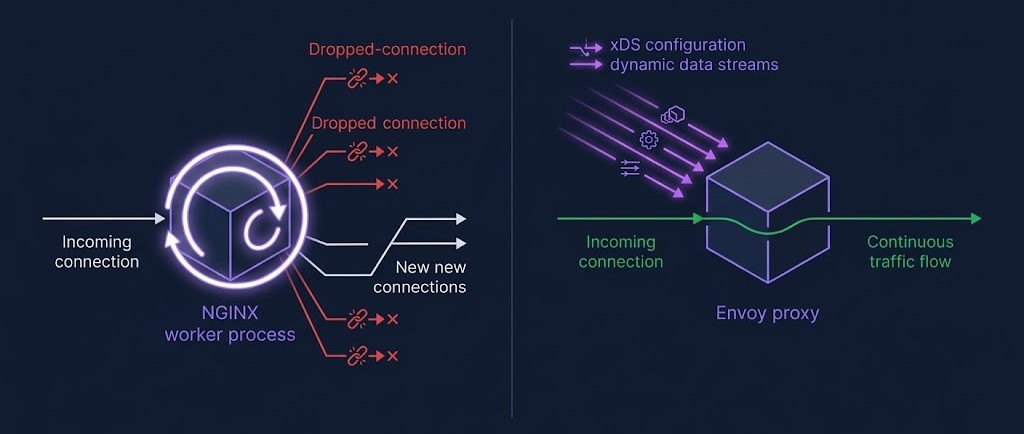

Reload-Based vs Dynamic Configuration: The Architectural Fork

The reload vs dynamic configuration distinction is the most operationally significant difference between controller architectures — more significant than any feature comparison.

NGINX-based controllers reload the worker process on configuration changes. The reload is fast — typically under 100ms. At low frequency: invisible. At 50–100 reloads per hour from a cluster with aggressive HPA configurations or high deployment velocity, the cumulative effect on tail latency and persistent connections is real. Monitor nginx_ingress_controller_config_last_reload_successful and reload frequency before this becomes a production problem.

Envoy-based controllers — Contour, Istio’s gateway, and AWS Gateway Controller — use xDS dynamic configuration delivery. Route changes propagate without process restart. For clusters with high pod churn or KEDA-driven autoscaling, this is architecturally significant rather than a preference. The autoscaler choice and the ingress controller choice have a dependency that most teams don’t map until they’re debugging correlated latency spikes.

Similarly, resource requests and limits on ingress controller pods are not a secondary concern. An under-resourced controller pod that gets OOM-killed or throttled under burst load is a full ingress outage. Size the controller like it’s critical infrastructure, because it is.

Controller Decision: Operational Tradeoffs by Profile

With the failure modes as context, here’s how the major controllers map to real operational environments. This is not a feature matrix — it’s a failure model and operational weight assessment.

The service mesh angle deserves a direct note: if your cluster is already running Istio or Cilium, adding a separate ingress controller creates a parallel traffic management layer with its own observability gaps. The service mesh vs eBPF tradeoff determines whether your ingress and east-west traffic share a unified data plane — and that decision has operational weight that shows up during incident response, not during initial deployment.

The Three Questions the Decision Actually Hinges On

Strip away the comparison matrices and the controller decision comes down to three questions. Answer these before you commit.

What is your cluster’s churn rate? Count your Ingress-triggering events per hour: HPA scale events, deployments, cert renewals, configuration changes. If that number is high and climbing, reload-based controllers carry real operational risk. This is not a hypothetical — it’s a direct dependency between your autoscaling strategy and your ingress architecture. The 502 and MTU debugging patterns that show up in ingress troubleshooting often trace back to reload timing under load rather than configuration errors.

Where does your annotation investment live? If you have years of Ingress annotations encoding routing logic, rate limiting, and authentication configuration across hundreds of resources, the Gateway API migration cost is real. It requires cataloging every annotation, testing every route, and coordinating with every application team that touches an Ingress object. Run that migration when you’re doing a platform modernization anyway — not as a standalone project.

Who operates this at 2 AM? A controller that a three-person platform team can debug during an incident is better than a technically superior controller no one fully understands. This is a legitimate selection criterion — not an excuse for technical debt. The platform engineering model puts ingress in the platform team’s operational domain, which means the controller needs to fit their observability stack, their runbook model, and their on-call capability.

The Day-2 Checklist Nobody Ships With

Before a controller goes to production, these questions need answers. They don’t change — only the urgency does, depending on whether you find them in testing or during an incident.

The containerd Day-2 failure patterns and these ingress failure modes share a structural similarity: they are invisible during initial deployment, they compound under real production load, and they surface at the worst possible time. The checklist exists to surface them earlier.
