GPU Cluster Architecture: Engineering the Hardware Stack for Private LLM Training

Private AI infrastructure is systems engineering, not optimization. If you treat a GPU cluster like a standard virtualization farm, you will fail. I have seen deployments where millions of dollars in H100s sat idle 40% of the time because the architect underestimated the network fabric or the storage controller’s ability to swallow a checkpoint.

The private LLM training hardware decisions that determine cluster efficiency aren’t made at the GPU level — they’re made at the interconnect, storage, and facilities layer. This post focuses on the physical realities of those decisions. If your GPUs are waiting, your architecture is failing.

For the specific configuration details — BIOS settings, RoCEv2 tuning, scheduler trade-offs — the companion post The Manual Nvidia Forgot: H100 Cluster Configuration Guide covers those in depth.

The Compute Layer: SXM vs. PCIe

The first question every CFO asks is why they can’t buy the PCIe version — it’s cheaper and fits in existing Dell R760s. As an architect, your job is to explain why that is a trap for training workloads.

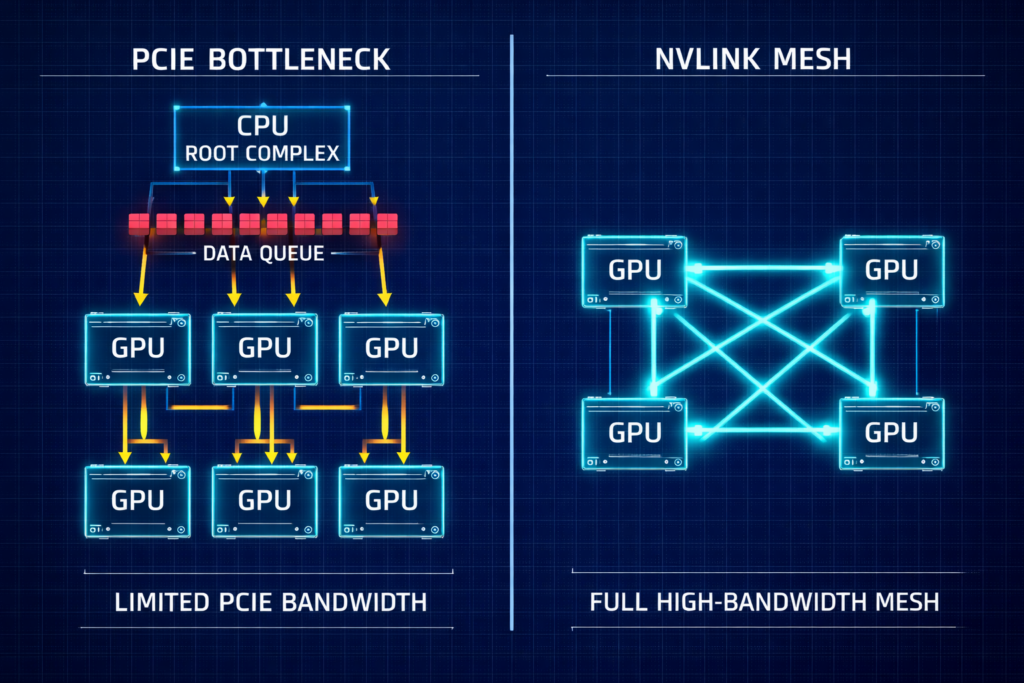

The Interconnect Bottleneck

In distributed training, GPUs do not work in isolation. They spend a significant percentage of every cycle syncing gradients via All-Reduce operations. The interconnect bandwidth between GPUs determines how much of each cycle is actually spent computing versus waiting.

• PCIe Gen5: Caps out at roughly 128 GB/s bi-directional — shared with everything else on the bus.

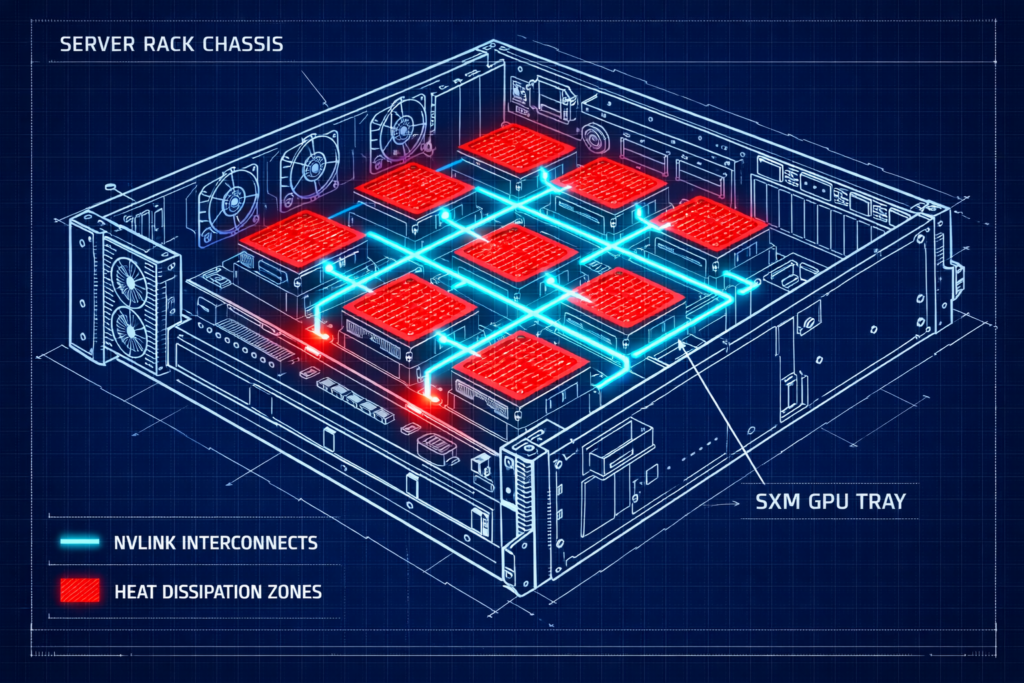

• NVLink (SXM5): Delivers ~900 GB/s of GPU-to-GPU bandwidth inside the node via the NVIDIA HGX H100 architecture — dedicated, point-to-point.

For 70B+ parameter models, PCIe latency becomes the dominant factor in total training time. You aren’t paying for compute — you are paying for your expensive GPUs to wait for data to traverse a bottleneck.

The decision framework is straightforward: use SXM5 (HGX) for foundation model training or heavy fine-tuning. Use PCIe for inference fleets or lightweight LoRA fine-tuning where the interconnect isn’t the constraint. Mixing the two in a training cluster creates scheduling and topology complexity that rarely pays off.

The Fabric: RoCEv2 vs. InfiniBand for Private LLM Training Hardware

InfiniBand — The Pure Choice

If you have the budget and the specialized talent, InfiniBand is the gold standard. It offers native credit-based flow control with effectively zero packet loss, extremely low deterministic latency, and superior collective communication via NCCL and SHARP. For hyperscale training at 1000+ GPU scale, it remains the reference architecture.

The drawback is operational: InfiniBand is an island. It requires specialized tooling, and engineers who understand it at production depth are rare and expensive. For most enterprise organizations, the talent gap is the real cost.

RoCEv2 — The Pragmatic Choice

RDMA over Converged Ethernet runs on standard Ethernet switches — Spectrum-4, Arista, Cisco. This is what I recommend for most enterprise builds because your existing network team can support it. The ecosystem is mature, the tooling is standard, and the operational overhead is manageable.

Field Note: I have seen a single silent switch buffer overflow stall a training run for 40% of its duration. The network looked “up,” but pause frames were choking the throughput. Monitoring priority pause frames is mandatory, not optional.

RoCEv2 requires perfect tuning of PFC (Priority Flow Control) and ECN (Explicit Congestion Notification). The failure mode is silent — the network appears healthy while pause frames destroy throughput. For the full fabric physics breakdown at scale, see GPU Fabric Physics 2026: Why 800G Isn’t Enough for 100k-GPU Training. For a direct comparison of the two fabric options, InfiniBand Is Losing the Fabric War covers the architectural trade-offs in detail.

The deterministic networking model that underpins both options is covered in Deterministic Networking: The Missing Layer in AI-Ready Infrastructure.

Storage: The Checkpoint Problem

LLM training crashes are inevitable. You survive them by writing checkpoints — snapshots of model weights — every 30–60 minutes. This isn’t just about saving data; it’s about saving progress. The storage subsystem that handles checkpoints is one of the most underspecified components in most private LLM training hardware builds.

• The math: A 175B model checkpoint is ~2.5TB (weights + optimizer states + metadata).
• The target: You need this write to finish in under 60 seconds to minimize GPU idle time.
• The requirement: Your storage subsystem must sustain ~40 GB/s write throughput per node.

Storage profiling before you sign the GPU PO: Simulate checkpoint bursts on your storage array before committing. Use fio to simulate 2–4TB sequential writes, test concurrency across multiple nodes simultaneously, check tail latency to ensure metadata storms don’t throttle throughput, and validate your topology — local NVMe scratch combined with a parallel filesystem is the most common production pattern.

For the full storage backend decision framework, The Storage Wall: ZFS vs. Ceph vs. NVMe-oF for AI Training Clusters covers the trade-offs in depth. For the all-NVMe case specifically, see All-NVMe Ceph for AI: When Distributed Storage Actually Beats Local ZFS.

High-performance storage references for AI training:

Decision Framework: Private LLM Training Hardware Build Tiers

Facilities: The Silent Killer

Private LLM training hardware doesn’t behave like standard 2U servers. The facilities requirements are a different category entirely, and underestimating them is one of the most common and expensive mistakes in early-stage AI infrastructure builds.

• Power: Expect ~10.2 kW per chassis. A 4-node Foundry-tier cluster requires ~40 kW of dedicated power — more than most enterprise racks are provisioned for.
• Cooling: If your ambient inlet temperature exceeds 25°C, your GPUs will throttle. Thermal management isn’t a nice-to-have — it’s a performance constraint.
• Rack density: Without rear-door heat exchangers or Direct Liquid Cooling (DLC), a standard 42U rack is effectively a 15U rack for HGX chassis. You simply cannot evacuate the heat fast enough.
