Kubernetes Ingress to Gateway API Migration: How to Move Without Breaking Production

To migrate ingress to Gateway API without breaking production, the work starts before you touch a manifest — in the annotation audit, the ConfigMap defaults, and the shared Ingress resources that no migration tool can handle for you.

Most migrations don’t fail during the cutover. They fail in the translation layer — quietly, before traffic ever moves. The annotation audit skipped. The ingress2gateway output treated as deployment-ready. The staging environment that shared none of the complexity of production. By the time the failure surfaces, it looks like a Gateway API problem. It isn’t. It’s a migration preparation problem.

Part 0 covered the four paths and their failure identities. Part 1 covered why the ecosystem shift is real and what annotation sprawl costs over time. The controller decision post covered which implementation fits which environment. This post is the execution layer.

Ingress-NGINX hit EOL on March 24 — the repository is read-only, no patches, no CVE fixes. Kubernetes 1.36 drops April 22 with Gateway API as the centerpiece. The window where this was a future consideration closed.

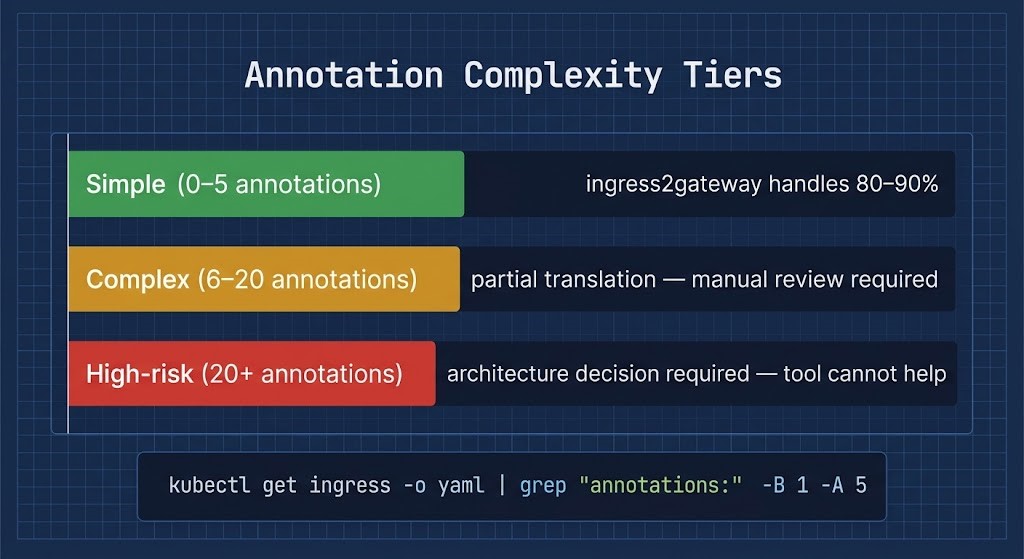

Before You Migrate Ingress to Gateway API — The Annotation Audit

The annotation count per Ingress resource is the number that determines which migration path is actually viable. Run this before anything else:

bash

# Count annotations per ingress resource across all namespaces
kubectl get ingress -A -o json | \
  jq -r '.items[] | "\(.metadata.namespace)/\(.metadata.name): \(.metadata.annotations | length) annotations"' | \
  sort -t: -k2 -rn

bash

# Find ingress resources routing multiple hosts — shared ingress candidates
kubectl get ingress -A -o json | \
  jq -r '.items[] | select(.spec.rules | length > 5) |
  "\(.metadata.namespace)/\(.metadata.name): \(.spec.rules | length) host rules"'

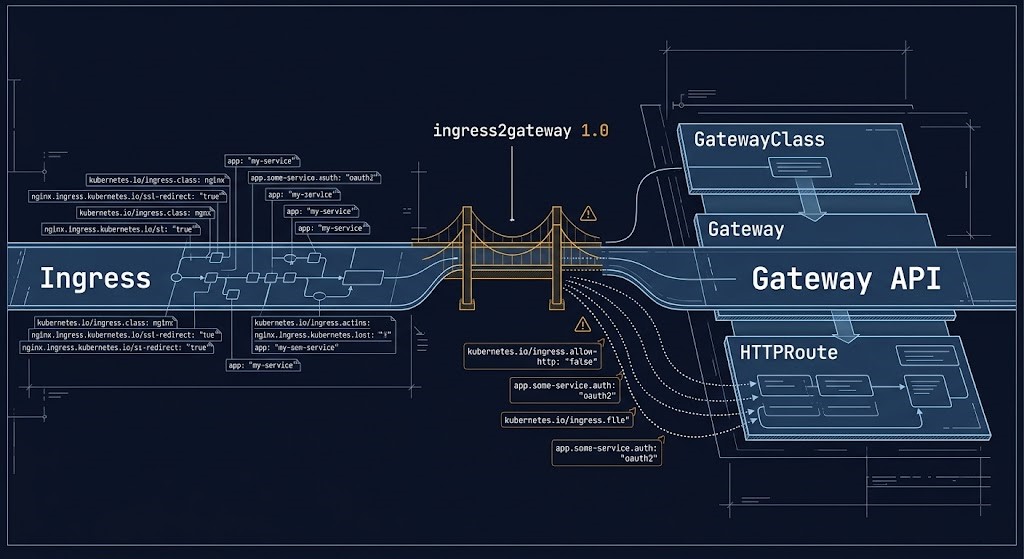

ingress2gateway 1.0 — Syntax Translator, Not Architecture Translator

ingress2gateway 1.0 is a significant improvement over previous versions. It supports 30+ common Ingress-NGINX annotations with behavioral equivalence tests that verify the translated configuration matches runtime behavior in live clusters — not just YAML structure. For straightforward environments it is genuinely useful.

It is a syntax translator. It is not an architecture translator.

What ingress2gateway translates cleanly:

bash

# Run ingress2gateway against your cluster
ingress2gateway print \
  --providers=ingress-nginx \
  --namespace=production

Implicit defaults that disappear — Ingress-NGINX applies defaults globally that you may not know exist: proxy buffer sizes, upstream keepalive connections, timeout values. These are not in your Ingress manifests. They are in your ConfigMap. They do not transfer to Gateway API automatically. Document your ConfigMap before migration and verify whether those defaults need to be explicitly set in your Gateway implementation.

What to Migrate First — and What to Leave Alone

Migration sequence matters more than migration speed. The temptation is to start with the highest-traffic services to prove the pattern works. That is the wrong sequence.

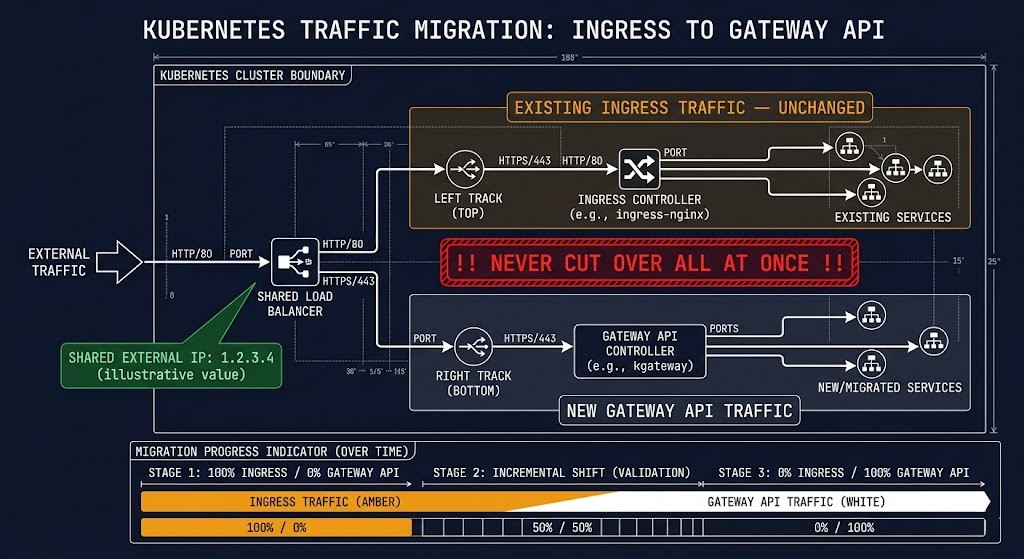

The Side-by-Side Deployment Pattern — The Only Safe Model

Cutover-first is an anti-pattern. Deploying Gateway API and decommissioning Ingress in the same change window is how teams end up rolling back at 2AM.

The side-by-side deployment pattern runs both controllers simultaneously against the same cluster, sharing the same external load balancer IP. Traffic routes through Ingress for existing services. New and migrated services route through Gateway API. Neither controller touches the other’s resources.

bash

# Install Gateway API CRDs
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.0/standard-install.yaml

# Deploy your chosen Gateway API controller alongside existing Ingress controller
# Example: NGINX Gateway Fabric
kubectl apply -f https://github.com/nginx/nginx-gateway-fabric/releases/download/v1.5.0/nginx-gateway-fabric.yaml

# Verify both controllers are running independently
kubectl get pods -n ingress-nginx
kubectl get pods -n nginx-gateway

Deploy a GatewayClass and Gateway resource pointing to your existing load balancer:

yaml

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: nginx-gateway
spec:
  controllerName: gateway.nginx.org/nginx-gateway-controller
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  namespace: nginx-gateway
spec:
  gatewayClassName: nginx-gateway
  listeners:
  - name: http
    port: 80
    protocol: HTTP
  - name: https
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - name: production-tls
        namespace: nginx-gateway

Start routing new services through HTTPRoutes. Do not touch existing Ingress resources. Validate each migrated service under load before decommissioning its Ingress equivalent. The DNS cutover — updating the external record from the Ingress controller service to the Gateway controller service — happens last, after all services have been validated in the side-by-side state.

The only caveat: do not configure both an Ingress resource and an HTTPRoute for the same hostname and path simultaneously. The two controllers would compete for the same traffic. Migrate one or the other — never both active for the same route.

HTTPRoute Translation Reality — What Maps Clean, What Doesn’t

The basic HTTPRoute is straightforward for engineers coming from Ingress:

yaml

# Ingress equivalent
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: app-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: app.example.com
    http:
      paths:
      - path: /api
        pathType: Prefix
        backend:
          service:
            name: api-service
            port:
              number: 8080
---
# Gateway API equivalent
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: app-route
  namespace: production
spec:
  parentRefs:
  - name: production-gateway
    namespace: nginx-gateway
  hostnames:
  - "app.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /api
    filters:
    - type: URLRewrite
      urlRewrite:
        path:
          type: ReplacePrefixMatch
          replacePrefixMatch: /
    backendRefs:
    - name: api-service
      port: 8080

Traffic splitting is where Gateway API’s model is genuinely superior — what required custom annotations in Ingress is native in HTTPRoute:

yaml

# Canary deployment — native weight-based splitting
rules:
- backendRefs:
  - name: api-stable
    port: 8080
    weight: 90
  - name: api-canary
    port: 8080
    weight: 10

Adjacent Dependencies — TLS, cert-manager, ExternalDNS

Three ecosystem tools break first when you migrate. Address them before the first HTTPRoute goes live.

yaml

# cert-manager Gateway API integration
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  listeners:
  - name: https
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - name: production-tls

The DNS Cutover — Zero-Downtime Execution

The shared-IP strategy makes the DNS cutover the safest step in the migration, not the riskiest. Because both controllers are running against the same load balancer IP during the side-by-side phase, the DNS record change is effectively a no-op for traffic that has already been migrated to HTTPRoutes.

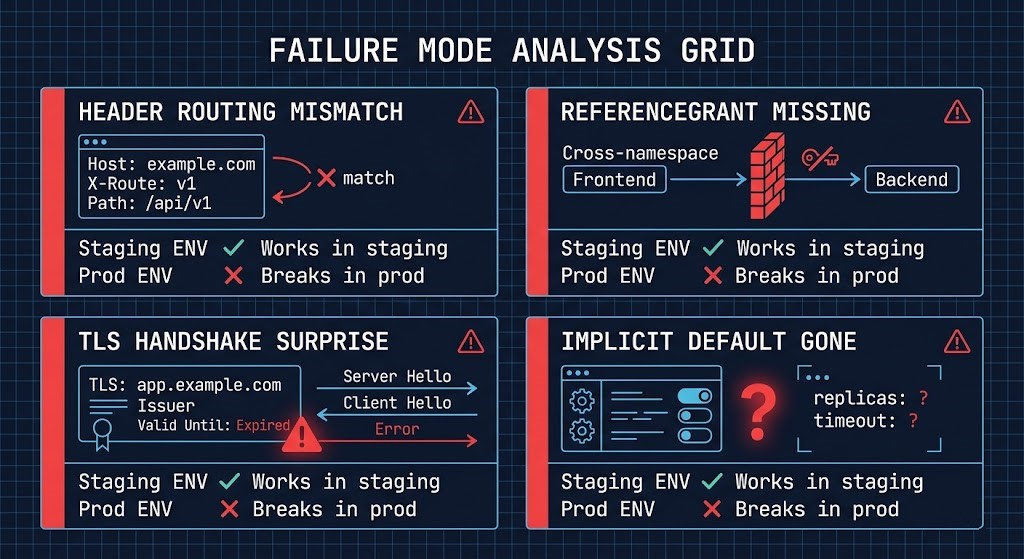

Production Failure Modes — Works in Staging, Breaks in Production

Staging environments don’t have the annotation complexity, traffic volume, or cross-namespace dependency graph of production. These failure modes are invisible until they aren’t.

The ReferenceGrant fix — required for any cross-namespace HTTPRoute:

yaml

apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: allow-frontend-routes
  namespace: api
spec:
  from:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    namespace: frontend
  to:
  - group: ""
    kind: Service

Multi-Cluster Considerations

Gateway API’s typed resource model makes multi-cluster standardization significantly cleaner than Ingress — but only if GatewayClass and Gateway configuration is consistent across clusters.

Define a standard GatewayClass per environment tier and manage it through the same GitOps pipeline that manages cluster provisioning. HTTPRoute resources then become portable. The annotation sprawl that accumulated in Ingress configs over three years will accumulate in Gateway configurations over the next three years if there is no governance layer enforcing consistency.

The Kubernetes Cluster Orchestration guide covers the cluster fleet management model that keeps this consistent at scale. For AI infrastructure workloads with deterministic networking requirements, the deterministic networking for AI infrastructure post covers where Gateway API’s traffic management model intersects with inference workload latency requirements.

Kubernetes 1.36 — What Changes April 22

Additional Resources
